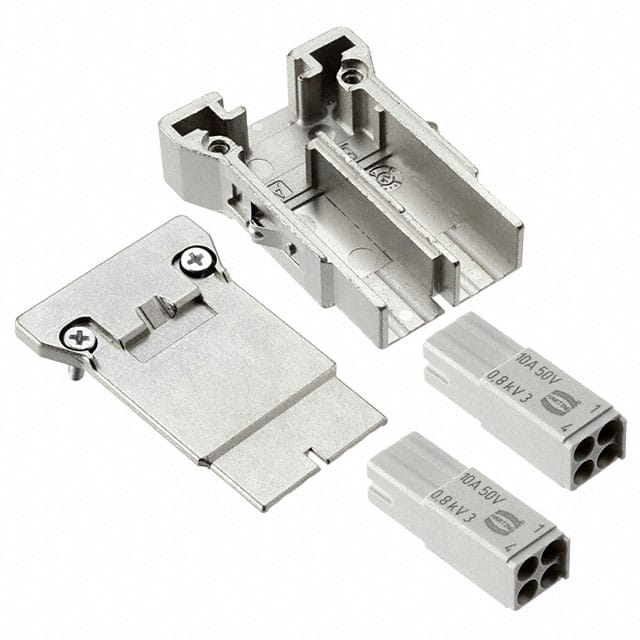

The Harting 09 14 008 3122 is a Han Megabit insert module designed for heavy-duty connector systems. This female insert features 8 contacts arranged in a 2x4 configuration with a single cable entry. It is part of the Han® Megabit module family, optimized for reliable data and power transmission in industrial environments. The insert is delivered without crimp contacts, which must be ordered separately. It includes a shield connection to the hinged frame for enhanced EMI protection.
Key electrical specifications include a rated current of 10 A, rated voltage of 50 V, and a rated impulse voltage of 0.8 kV. The module supports Cat. 5 Class D transmission up to 100 MHz, enabling data rates up to 100 Mbit/s. The contact resistance for shielding is ≤100 mΩ. The conductor cross-section range is 0.14 to 2.5 mm², with a maximum wire outer diameter of 3.5 mm. The operating temperature range is -40°C to +85°C, with a minimum of 500 mating cycles.
The insert is made of polycarbonate (PC) with a pebble grey color (RAL 7032), and the shielding is zinc die-cast with nickel plating. The flammability rating is UL 94 V-0. The module is approved to IEC 60664-1, IEC 61984, UL 1977, CSA C22.2 No. 182.3, and DNV GL. It is not suitable for hoods/housings with low construction, Han-Modular® Eco, Compact, or Twin. The net weight is 43 g. The packaging quantity is 1 piece.
It has 8 contacts arranged in a 2x4 configuration.
The rated current is 10 A.
The rated voltage is 50 V.
-40°C to +85°C.
0.14 to 2.5 mm² conductor cross-section, with a maximum wire outer diameter of 3.5 mm.
Yes, it supports Cat. 5 Class D up to 100 MHz, with a data rate of 100 Mbit/s.
RoHS compliant, REACH compliant (Annex XVII/XIV/SVHC not contained), California Proposition 65 substances not contained, ELV compliant, and China RoHS e.
