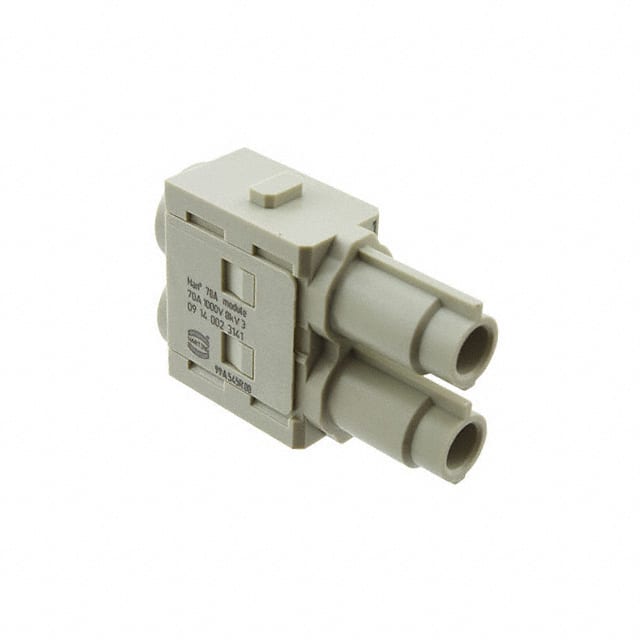

09140023141 Harting 09140023141 is a Han 70A crimp module, female, with 2 positions, rated 70A and 1000V. Crimp termination, requires separate contacts.
Mfr Part #:

09140023141

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09140023141 is a Han 70A crimp module, female, with 2 positions, rated 70A and 1000V. Crimp termination, requires separate contacts.
✓ Total Stock: 4 pcs

09140023141 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09140023141 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Country of Origin
Current Rating
Current Rating (Amps)
Gender
Halogen Free
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Positions
Operating Temperature
SVHC Present
Termination Style
Voltage Rating
View Similar Products (0)

09140023141 Description

Short technical summary and product information.

The Harting 09140023141 is a Han-Modular® 70A crimp module designed for heavy-duty connector applications. This female module features 2 positions and accepts conductor cross-sections from 6 to 25 mm² with a maximum wire outer diameter of 11.5 mm. It is rated for 70 A current and 1000 V voltage, with an impulse voltage rating of 8 kV. The module is made of polycarbonate (PC) with a pebble grey color (RAL 7032) and meets UL 94 V-0 flammability class. It is RoHS compliant, REACH SVHC free, and meets California Proposition 65 requirements. The module has an insulation resistance greater than 10^10 ohms and operates in a temperature range of -40°C to 125°C. It is designed for over 10,000 mating cycles with other HMC components. Note: Crimp contacts are sold separately. The module is manufactured in Germany and is suitable for railway applications per EN 45545-2.

09140023141 Quick Information

Product Type: Heavy Duty Connector Module
Series: Han-Modular
Canonical Name: Han 70A Crimp Module, Female, 2 Positions, Crimp Termination
Subcategory: Crimp Module

09140023141 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC: Not contained
Lead Free: No

09140023141 Features

  • Rated for 70A and 1000V operation.
  • Female module with 2 crimp positions.
  • Accepts 6 to 25 mm² conductors.
  • Polycarbonate insert with UL 94 V-0.
  • Requires separate crimp contacts.

09140023141 Applications

  • Used in heavy-duty industrial connectors.
  • Suitable for power transmission applications.
  • Ideal for railway rolling stock per EN 45545-2.
  • Applied in machinery and equipment wiring.

09140023141 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this module have?

This module has 2 positions.

What is the current rating of this module?

The current rating is 70 A.

What is the voltage rating?

The voltage rating is 1000 V.

What termination style does this module use?

The termination style is crimp.

What is the operating temperature range?

-40°C to 125°C.

Is this module RoHS compliant?

Yes, it is RoHS compliant.

What is the flammability rating?

UL 94 V-0.
