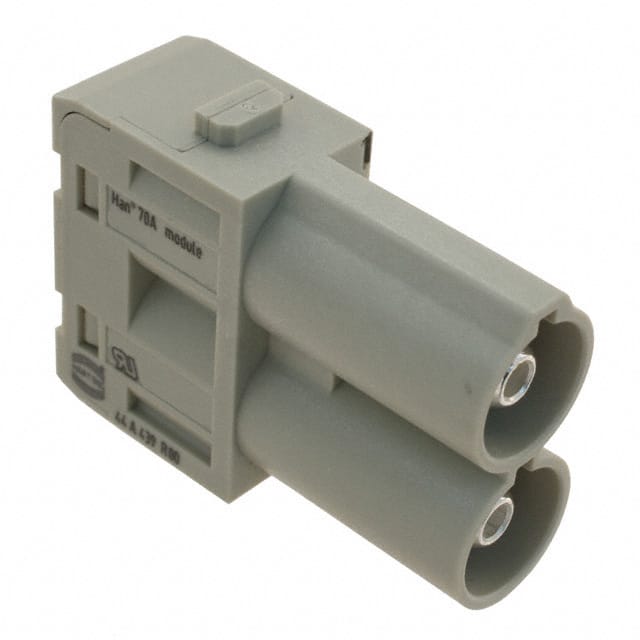

The Han 70A axial module (09 14 002 2646) is part of the Harting Han-Modular series. This male module features 2 contacts and axial screw termination for conductor cross-sections from 6 to 16 mm². It delivers a rated current of 70 A and a rated voltage of 1000 V, with an impulse withstand voltage of 8 kV (pollution degree 3). Contact resistance is ≤0.5 mΩ and insulation resistance exceeds 10¹⁰ Ω.
Mechanically, the module supports stripping lengths of 11–12 mm and requires tightening torques between 2 Nm and 4 Nm depending on wire size. The insert is made of polycarbonate (PC) with RAL 7032 color, while contacts use silver-plated copper alloy. The module withstands at least 500 mating cycles and operates from -40 to +125 °C.
The module is compliant with RoHS (with exemption 6(c) for lead) and has a UL 94 V-0 flammability rating. It is designed for use in heavy-duty connector applications and is supplied in a standard package quantity of 2 pieces.
2 contacts.
70 A.
1000 V.
6 to 16 mm².
-40 to +125 °C.
UL 94 V-0.
≥500 cycles.
