09140014651 Harting 09140014651 is a Han-Modular® USB module with male connector, screw termination, 4 positions, and USB 2.0 support. Rated for 1A and 30V.
Mfr Part #:

09140014651

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09140014651 is a Han-Modular® USB module with male connector, screw termination, 4 positions, and USB 2.0 support. Rated for 1A and 30V.
✓ Total Stock: 7 pcs

09140014651 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09140014651 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating
Current Rating (Amps)
Failure Rate
Gender
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Positions
Operating Temperature
Rated Voltage
SVHC Present
Termination Style
Voltage Rating
View Similar Products (0)

09140014651 Description

Short technical summary and product information.

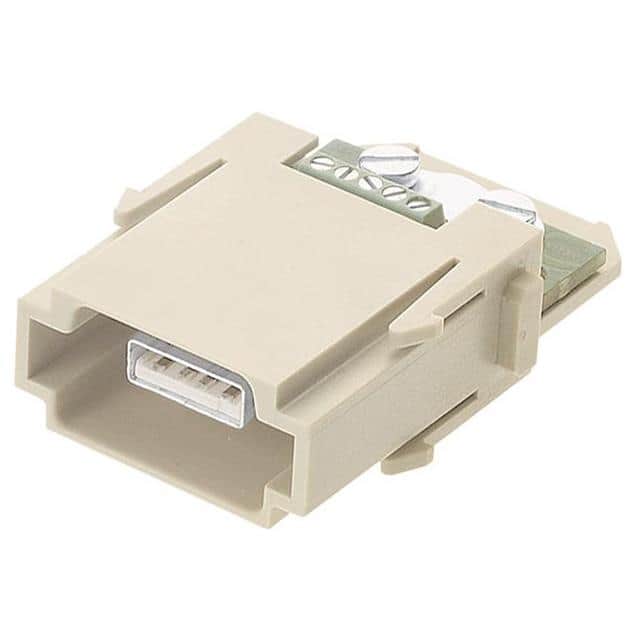

The Harting 09140014651 is a Han® USB module designed for use in the Han-Modular® connector system. It features a male connector with 4 positions and screw termination, supporting USB 2.0 data transmission. The module is rated for a current of 1 A and a voltage of 30 V (UL) or 50 V, with an impulse voltage of 0.8 kV. The insulation resistance exceeds 10¹⁰ Ω, ensuring reliable signal integrity.



Mechanically, the module accepts conductor cross-sections from 0.14 to 0.5 mm², with a stripping length of 4.5 mm and a tightening torque of 0.12 N·m. It is rated for at least 500 mating cycles. The insert is made of polycarbonate (PC) with a RAL 7032 pebble grey color and meets UL 94 V-0 flammability requirements. The operating temperature range is -40 to 85 °C.



The module is part of the modular Han-Modular® system, allowing integration into various frame and housing configurations for heavy duty industrial applications. It is suitable for use in control cabinets, machine tools, and automation equipment where a robust USB connection is required.

09140014651 Quick Information

Product Type: USB Module Connector
Series: Han-Modular®
Canonical Name: Harting Han® USB Module, Male, Screw Termination, 4 Position, USB 2.0
Subcategory: USB Module

09140014651 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC substances: Lead

09140014651 Features

  • USB 2.0 module with screw termination.
  • Rated for 1 A current and 30 V voltage.
  • 4 positions in single module size.
  • Han-Modular® series heavy duty connector.
  • Operating temperature from -40 to 85 °C.

09140014651 Applications

  • Used in industrial control cabinets.
  • For data transmission in heavy duty connectors.
  • Ideal for machine tool interfaces.
  • Suitable for robotics and automation.

09140014651 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09140014651 have?

4 positions.

What is the current rating of this module?

1 A.

What voltage does it support?

Rated voltage 50 V; rated voltage acc. to UL 30 V.

What USB version does it support?

USB 2.0.

What is the operating temperature range?

-40 to 85 °C.

What is the insulation resistance?

Greater than 10¹⁰ Ω.

Is the Harting 09140014651 RoHS compliant?

Yes, with exemption 6(c) for lead in copper alloy.
