| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-04-21 03:15:09 |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Cable Diameter | |
| Cable Entry Type | |
| Cable Gland Material | |
| California Proposition 65 | |
| Connector Type | |
| Country of Origin | |
| Customs Tariff | |
| ETIM | |
| Failure Rate | |
| Flammability Class | |
| GTIN | |
| Height | |
| Housing Color | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Mating Cycles | |
| Net Weight | |
| Number of Cable Entries | |
| Operating Temperature | |
| Packaging Size | |
| Railway Fire Protection | |
| SVHC Present | |
| Seal Material | |
| Specifications | |
| Style | |
| Tightening Torque | |
| Width | |
| eCl@ss |

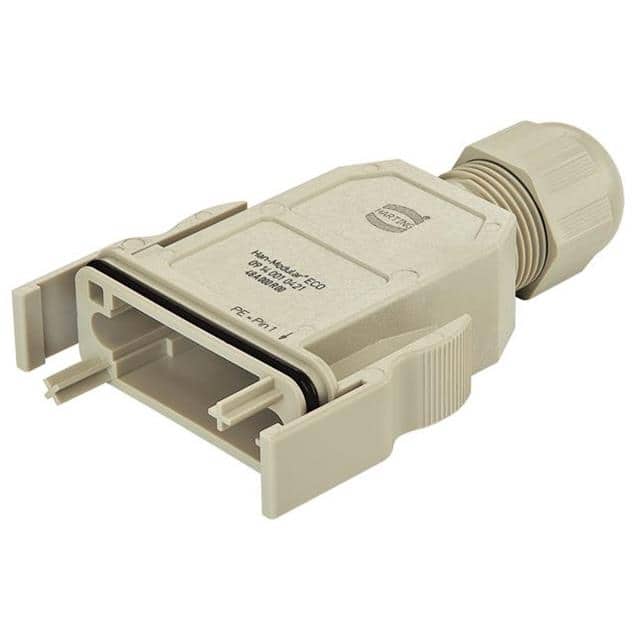

The Harting 09140010421 is a Han-Modular ECO hood designed for heavy duty connector applications. It features a top entry configuration with an integrated cable gland for cable diameters from 6 to 13 mm. The housing is made of polycarbonate (PC) in RAL 7032 pebble grey, with a polyamide cable gland and NBR seal. It provides IP65 ingress protection against dust and water jets. The locking mechanism uses snap-in latches with a side latch lock on the hood. The operating temperature range is -40°C to +85°C, and it is rated for at least 500 mating cycles. The hood meets UL94 V-0 flammability class and is compliant with RoHS, REACH, and California Proposition 65. It is suitable for industrial environments requiring reliable and durable connector housings.
IP65 - Dust Tight, Water Resistant.
-40°C to +85°C.
Cable diameter 6 to 13 mm.
Snap-in latches with side latch lock on hood.
Polycarbonate (PC) in RAL 7032 pebble grey.
At least 500 mating cycles.
UL94 V-0.
