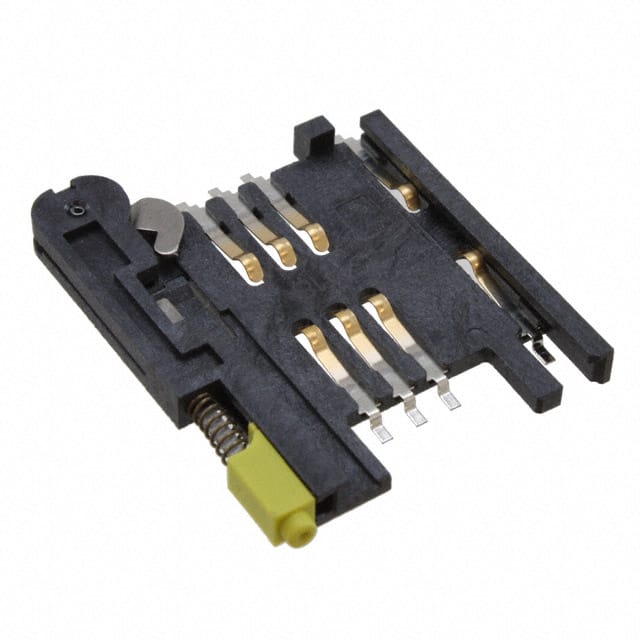

0912283001 Molex 0912283001 is a SIM card connector and ejector with 8 positions (6+2), surface mount right angle mounting, push-push insertion/removal, and gold contact finish.
Mfr Part #:

0912283001

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0912283001 is a SIM card connector and ejector with 8 positions (6+2), surface mount right angle mounting, push-push insertion/removal, and gold contact finish.
✓ Total Stock: 200 pcs

0912283001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0912283001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Ejector Side
Features
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
SVHC Present
View Similar Products (0)

0912283001 Description

Short technical summary and product information.

The Molex 0912283001 is a SIM card connector designed for reliable card insertion and ejection in compact electronic devices. It features a push-push mechanism with the ejector on the left side, allowing easy card installation and removal. The connector offers 8 positions (6+2) and is surface mounted at a right angle, with a height above board of 3.00mm (0.118 inches).



Electrical performance is supported by gold-plated contacts with a thickness of 0.10µm (3.94µin), ensuring low contact resistance and corrosion resistance. The connector includes a board guide and an integrated switch for card detection.



This component is suitable for applications requiring a standard SIM card interface in space-constrained designs. The surface mount right-angle configuration facilitates automated assembly and saves PCB real estate.

0912283001 Quick Information

Product Type: SIM Card Connector
Canonical Name: Molex 0912283001 SIM Card Connector and Ejector
Subcategory: Push-Push

0912283001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0912283001 Features

  • SIM card connector with ejector mechanism.
  • 8 positions (6+2) for standard SIM cards.
  • Surface mount right angle mounting style.
  • Gold contact finish for reliable connections.
  • Includes board guide and integrated switch.

0912283001 Applications

  • Used in mobile phones and tablets.
  • Ideal for IoT and embedded systems.
  • Suitable for portable consumer electronics.
  • Applied in industrial handheld devices.

0912283001 FAQs

6 frequently asked questions generated from this part’s specifications.
What type of card does this connector accept?

This connector accepts a SIM card.

How many positions does the connector have?

The connector has 8 positions (6+2).

What is the mounting style of this connector?

It is surface mount, right angle.

What is the insertion and removal method?

Push In, Push Out (push-push).

What is the contact finish?

Gold with a thickness of 0.10µm (3.94µin).

What is the height above board?

3.00mm (0.118 inches).
