| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

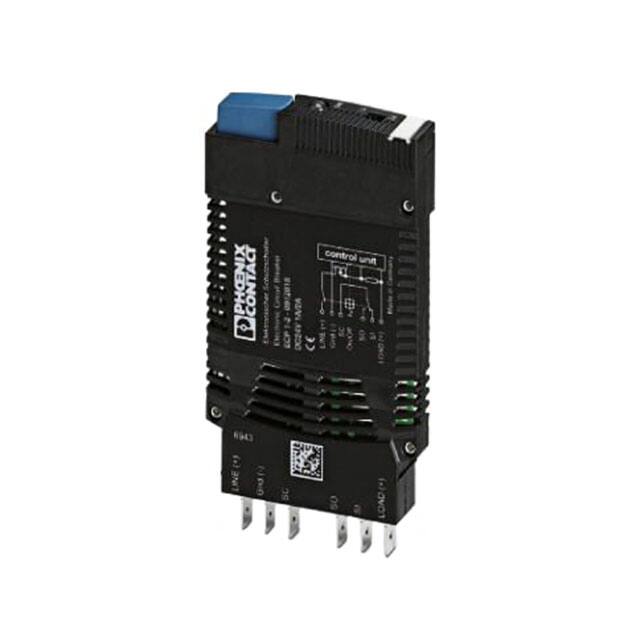

The Phoenix Contact 0912018 is a 1-pole, solid state circuit breaker with a 2A nominal current rating and a 24V DC voltage rating. Its compact design width of 12.5 mm per channel allows for efficient use of space in control panels.
This circuit breaker selectively protects 24V DC load circuits using active electronic current limitation and electrical isolation. It is designed to handle capacitive loads up to 20,000 µF during switch-on and provides protection against overloads and short circuits. The active current limitation is typically 1.8 times the nominal current (1.8 x IN).
Features include a push-push actuation manual on/off switch and integrated signal contacts for indicating operating and error states. The device is designed to be plugged onto a modular base for quick and easy mounting. It is suitable for applications involving switched-mode power supplies where maintaining voltage across all load circuits during an error in one circuit is critical.
Mounting is achieved via a holder. The breaker type is solid state, and it offers clear indication of its status.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current rating is 2A.
The operating voltage is 24 VDC.
It is a solid state circuit breaker.
The mounting type is holder.
Active current limitation is typically 1.8 x IN when handling capacitive loads up to 20,000 µF.
The design width is 12.5 mm per channel.
