| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Conductor Cross Section | |
| Contact Material | |
| Contents | |
| Country of Origin | |
| Degree of Protection | |
| ETIM | |
| Flammability Class | |
| GTIN | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Limiting Temperature | |
| Locking Material | |
| Mating Cycles | |
| Net Weight | |
| Number of Positions | |
| Packaging Size | |
| Pollution Degree | |
| Rated Current | |
| Rated Impulse Voltage | |
| Rated Voltage | |
| Rated Voltage (CSA) | |
| Rated Voltage (UL) | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Termination Style |

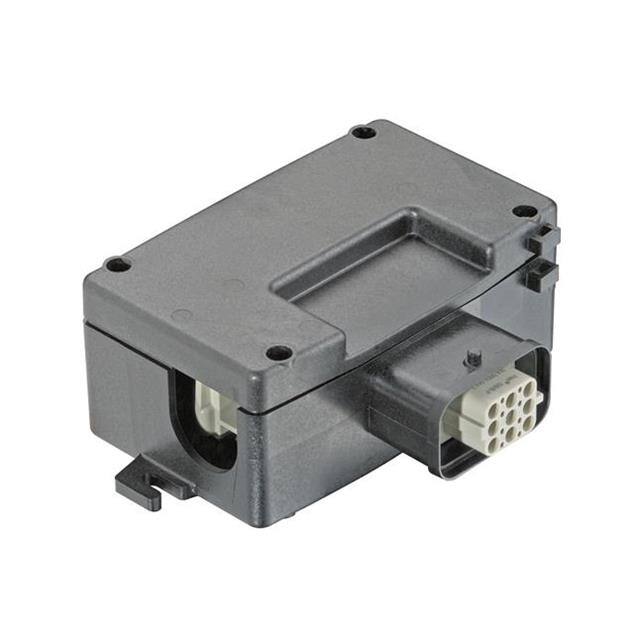

The Harting 09120084811 is a Han-Power S energy distributor designed for industrial power distribution applications. It features a single Han Q8/0-F female insert housed in a Han-Compact hood, providing 8 contacts with IDC (insulation displacement) termination suitable for stranded wires according to IEC 60228 Class 5 with conductor cross-sections from 4 to 6 mm².
Electrically, the connector is rated for 25 A current and 500 V voltage (600 V UL/CSA), with a rated impulse voltage of 6 kV and pollution degree 3. The insulation resistance exceeds 10¹⁰ Ω, and the limiting temperature range is -40 to +125 °C. It is designed for at least 500 mating cycles and offers IP65 degree of protection per IEC 60529.
The housing is made of polycarbonate (PC) in RAL 9005 jet black, with NBR seals and polyamide (PA) locking elements. Contacts are copper alloy. The flammability class is UL 94 V-0. The connector is RoHS compliant with exemption 6(c) for lead in copper alloy, and contains SVHC lead under REACH.
This energy distributor is intended for use in heavy-duty industrial environments requiring reliable power distribution with quick IDC termination. The side entry style facilitates installation in confined spaces. Net weight is 329 g, and it is manufactured in Romania.
8 contacts (including PE contact).
25 A.
500 V (600 V UL/CSA).
IDC (insulation displacement) for stranded wires 4-6 mm².
-40 to +125 °C.
IP65 per IEC 60529.
Yes, with exemption 6(c) for lead in copper alloy.
