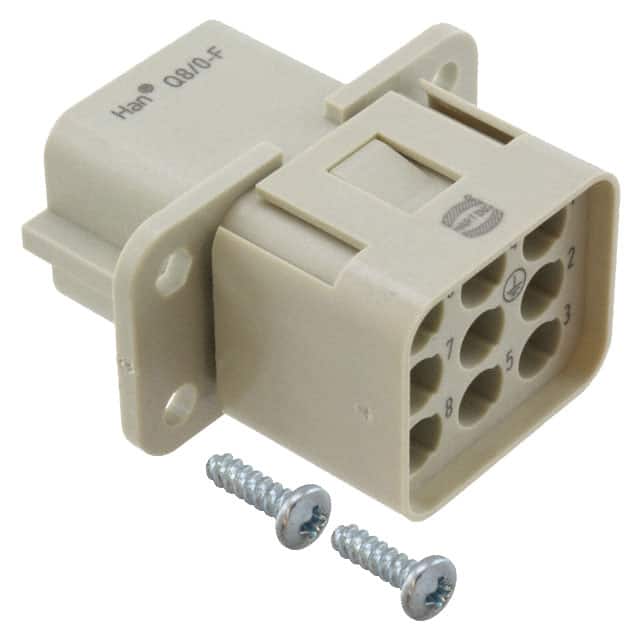

09120083101 Harting Han Q 8/0 BU-C female insert with 8 contacts plus PE contact, crimp termination, rated 16A and 500V.
Mfr Part #:

09120083101

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han Q 8/0 BU-C female insert with 8 contacts plus PE contact, crimp termination, rated 16A and 500V.
✓ Total Stock: 7 pcs

09120083101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09120083101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Current Rating (Amps)
Failure Rate
Gender
Insulation Resistance
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Prop 65
Rated Current
Rated Voltage
SVHC Present
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

09120083101 Description

Short technical summary and product information.

The Harting 09120083101 is a Han Q 8/0 BU-C female insert designed for heavy-duty connector applications. It features 8 contacts plus a PE (protective earth) contact, with a crimp termination method. The insert is rated for 16A current and 500V voltage, with a rated impulse voltage of 6kV and pollution degree 3. It accepts conductor cross-sections from 0.14 to 4 mm².



The insert is made of polycarbonate (PC) with a pebble grey color (RAL 7032) and has a flammability class of V-0 per UL 94. It is designed for use with Han-Compact® housings and is part of the Han Q series. The operating temperature range is -40°C to 125°C, and it is rated for at least 500 mating cycles.



This insert is sold without contacts; crimp contacts must be ordered separately. It complies with RoHS (with exemption 6(c) for lead in copper alloy), REACH (contains lead as SVHC), and California Proposition 65 (contains lead).

09120083101 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han Q
Canonical Name: Han Q 8/0 BU-C Insert Female 8Pos+1Gnd Crimp
Subcategory: Heavy Duty Connector Inserts

09120083101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant

09120083101 Features

  • Female insert with 8 contacts plus PE.
  • Rated 16A current and 500V voltage.
  • Crimp termination for 0.14-4 mm² wire.
  • Polycarbonate insert, V-0 flammability class.
  • Rated for 500 mating cycles minimum.

09120083101 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for power and signal transmission.
  • Ideal for machinery and control cabinet wiring.
  • Compatible with Han-Compact® housings.

09120083101 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of this insert?

16 A.

What is the voltage rating?

500 V (600 V UL/CSA).

How many contacts does this insert have?

8 contacts plus a PE (protective earth) contact.

What termination method does it use?

Crimp termination.

What is the operating temperature range?

-40°C to 125°C.

Is this insert RoHS compliant?

Yes, with exemption 6(c) for lead in copper alloy.

What material is the insert made of?

Polycarbonate (PC), color RAL 7032 pebble grey.
