| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Gender | |
| Industrial Grade | |
| Insulation Resistance | |
| Mating Cycles | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating |

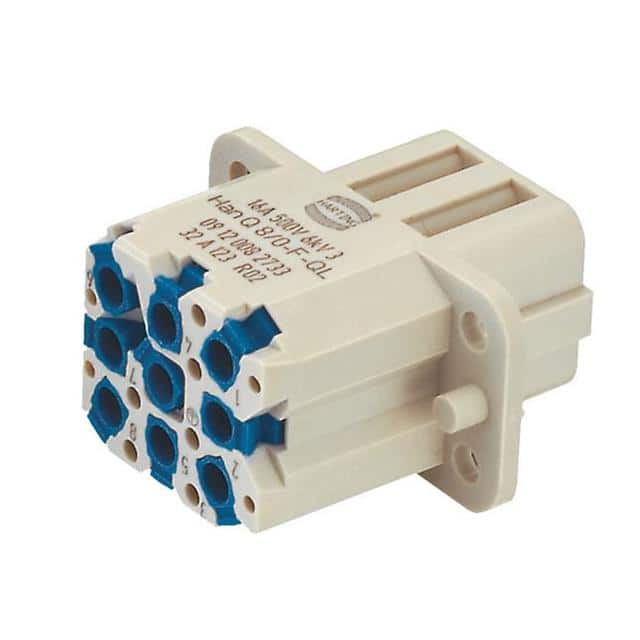

The Harting 09120082734 is a female insert from the Han Q series, part of the Han-Compact family. It features 8 contacts with push-in with lock termination, allowing for quick and secure wire connection without tools. The insert is rated for 16A at 500V (IEC) and 600V (UL/CSA), with an impulse voltage rating of 6 kV and pollution degree 3.
With a conductor cross-section range of 0.25 to 1.5 mm² for fine strand wire, the insert supports stripping lengths of 10 mm. The operating temperature range is -40°C to +125°C, and it is rated for at least 500 mating cycles. The insert is made of polycarbonate (PC) with V-0 flammability rating, while the contacts are copper alloy with silver plating.
The insert is RoHS compliant with exemption 6(c) for lead content, and meets ELV, China RoHS 50, and railway fire protection standards EN 45545-2. It is designed for use in heavy duty connector systems, typically in industrial machinery, control cabinets, and power distribution applications.
8 positions.
16 A.
500 V (IEC) and 600 V (UL/CSA).
Push In with Lock (Han-Quick Lock termination).
-40 °C to +125 °C.
0.25 to 1.5 mm² for fine strand wire.
Yes, the insert material is rated UL 94 V-0.
