09120082634 Harting 09120082634 is a male insert with 8 positions, Push In Lock termination, rated 16A and 500V. It is part of the Han Q series with Han-Compact size.
Mfr Part #:

09120082634

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09120082634 is a male insert with 8 positions, Push In Lock termination, rated 16A and 500V. It is part of the Han Q series with Han-Compact size.
✓ Total Stock: 8 pcs

09120082634 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09120082634 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Resistance
Current Rating
Current Rating (Amps)
Failure Rate
Gender
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Positions
Operating Temperature
Prop 65
SVHC Present
Termination Style
Voltage Rating
View Similar Products (0)

09120082634 Description

Short technical summary and product information.

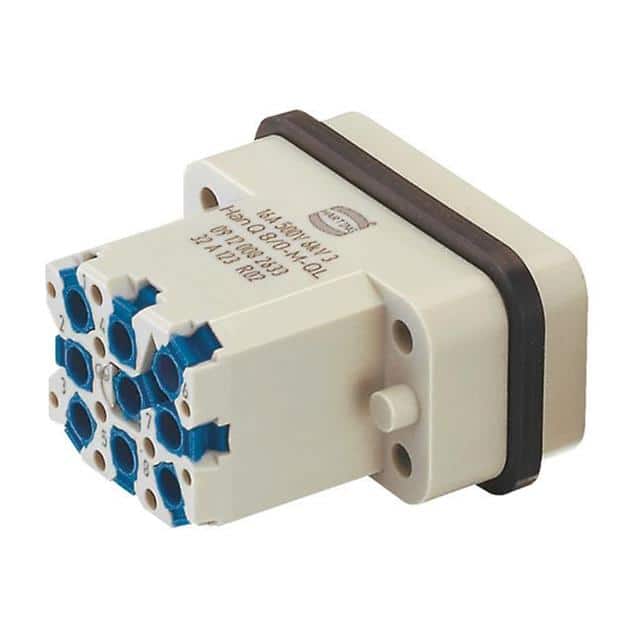

The Harting 09120082634 is a male insert from the Han Q series, designed for heavy-duty connector applications. It features 8 contacts with Push In Lock termination (Han-Quick Lock) for wire cross-sections from 0.25 to 1.5 mm². The insert is rated for 16A current and 500V voltage, with a rated impulse voltage of 6kV and pollution degree 3. It operates over a temperature range of -40°C to +125°C and supports at least 500 mating cycles. The housing is made of polycarbonate (UL 94 V-0) with silver-plated copper alloy contacts. This insert includes a PE contact and is suitable for use in industrial environments requiring robust connectivity.

09120082634 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han Q
Canonical Name: Han Q8/0-M-QL Insert Male 8POS
Subcategory: Heavy Duty Connector Inserts

09120082634 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC substances: Lead

09120082634 Features

  • 8-position male insert with Push In Lock termination.
  • Rated for 16A current and 500V voltage.
  • Supports wire cross-sections from 0.25 to 1.5 mm².
  • Silver-plated copper contacts for low resistance.
  • UL 94 V-0 flammability rated polycarbonate housing.

09120082634 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for machine building and automation applications.
  • Ideal for power and signal transmission in harsh environments.

09120082634 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09120082634 insert have?

8 positions.

What is the current rating of this insert?

16 A.

What is the voltage rating?

500 V.

What termination style does it use?

Push In with Lock (Han-Quick Lock termination).

What wire cross-section does it accept?

0.25 to 1.5 mm².

What is the operating temperature range?

-40°C to +125°C.

Is the insert RoHS compliant?

Yes, with exemption 6(c) for lead in copper alloy.
