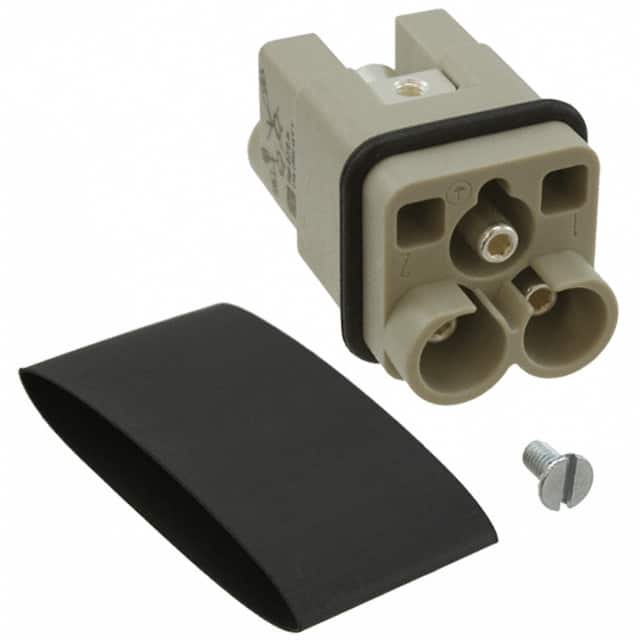

09120022654 Harting 09120022654 is a male heavy duty connector insert with 2 positions and screw termination, rated for 40A at 600V.
Mfr Part #:

09120022654

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09120022654 is a male heavy duty connector insert with 2 positions and screw termination, rated for 40A at 600V.
✓ Total Stock: 2 pcs

09120022654 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09120022654 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Current Rating
Current Rating (Amps)
Gender
Number of Positions
Operating Temperature
Operating Temperature Range
SVHC Present
Termination Style
Voltage Rating
View Similar Products (0)

09120022654 Description

Short technical summary and product information.

The Harting 09120022654 is a heavy duty connector insert designed for industrial power and signal applications. This male insert features 2 positions with screw termination, providing a reliable and secure connection for high-current circuits.



Rated for 40A at 600V, this insert is suitable for demanding environments. It has a size designation of 3A and operates over a wide temperature range from -40°C to 125°C, ensuring performance in extreme conditions.



This insert is part of Harting's heavy duty connector system, designed for modular and flexible connectivity solutions in factory automation, machinery, and power distribution. The screw termination allows for easy field installation and maintenance.

09120022654 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han Q
Canonical Name: Harting Heavy Duty Connector Insert, Male, 2 Positions, Screw Termination, 40A, 600V
Subcategory: Male Insert

09120022654 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09120022654 Features

  • Male insert with 2 screw-terminated positions.
  • Rated for 40A at 600V continuous current.
  • Operates from -40°C to 125°C temperature range.
  • Size 3A heavy duty connector insert.
  • Screw termination for secure field wiring.

09120022654 Applications

  • Used in industrial power distribution systems.
  • Suitable for factory automation equipment.
  • Ideal for heavy machinery control panels.
  • Applied in transportation and energy infrastructure.

09120022654 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the Harting 09120022654?

The current rating is 40A.

What is the voltage rating of this connector insert?

The voltage rating is 600V.

How many positions does the 09120022654 have?

It has 2 positions.

What termination style does this insert use?

It uses screw termination.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

Is this insert male or female?

It is a male insert.

What size is this heavy duty connector insert?

The size is 3A.
