| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Conductor Cross Section | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Country of Origin | |
| ETIM | |
| Failure Rate | |
| GTIN | |
| Gender | |
| Manufacturing Process | |
| Mating Cycles | |
| Net Weight | |
| Operating Temperature Range | |
| Packaging Size | |
| Pin or Socket | |
| Rated Current | |
| SVHC Present | |
| Specifications | |
| Stripping Length | |
| Termination Method | |
| Type | |
| Wire Gauge | |
| eCl@ss |

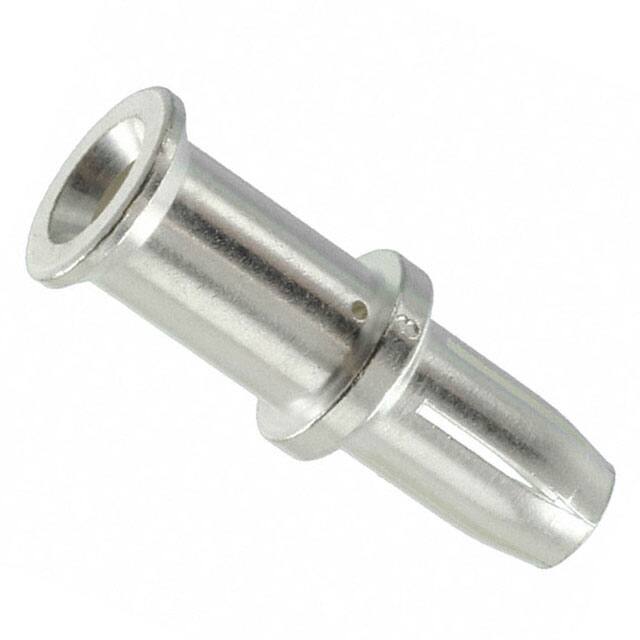

The Harting 09110006232 is a Han TC70 series female crimp contact designed for heavy-duty connector applications. It accommodates a 16mm² conductor cross-section and is rated for up to 70A continuous current with a contact resistance of ≤0.5 mΩ.
This turned contact is made from copper alloy with a silver plated finish, ensuring reliable conductivity and corrosion resistance. It supports a stripping length of 15.5mm and is rated for at least 500 mating cycles. The operating temperature range spans -40°C to +125°C.
The contact is supplied in a packaging size of 10 pieces with a net weight of 8.94g each. It complies with IEC 60664-1 and IEC 61984 specifications and is manufactured in Germany.
The rated current is 70 A.
It accepts a 16 mm² conductor.
The contact is made of copper alloy with a silver plated finish.
It is rated for at least 500 mating cycles.
The operating temperature range is -40 to +125 °C.
Yes, it is RoHS compliant with exemption 6(c) as the copper alloy contains up to 4% lead by weight.
The contact resistance is ≤0.5 mΩ.
