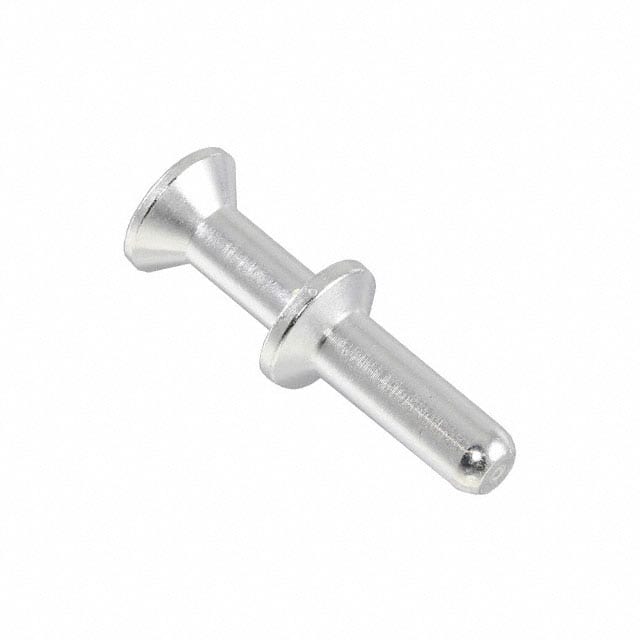

09110006132 Harting 09110006132 is a heavy duty male crimp contact for 6 AWG (16 mm²) wire, rated up to 70A. It features a silver-plated copper alloy construction and is designed for the Han TC70 series.
Mfr Part #:

09110006132

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09110006132 is a heavy duty male crimp contact for 6 AWG (16 mm²) wire, rated up to 70A. It features a silver-plated copper alloy construction and is designed for the Han TC70 series.
✓ Total Stock: 10 pcs

09110006132 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09110006132 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Resistance
Contact Termination
Country of Origin
Failure Rate
Gender
Mating Cycles
Pin or Socket
Rated Current
SVHC Present
Type
Wire Gauge
View Similar Products (0)

09110006132 Description

Short technical summary and product information.

The Harting 09110006132 is a heavy duty male crimp contact from the Han TC70 series, designed for use in industrial connector systems. It accommodates 6 AWG (16 mm²) wire with a specified stripping length of 15.5 mm and uses a machined turned contact manufacturing process for reliable performance.



Electrically, the contact is rated for continuous current up to 70 A with a contact resistance of ≤0.5 mΩ, ensuring efficient power transmission. The silver-plated copper alloy material provides excellent conductivity and corrosion resistance, with a plating thickness of 3.00 µm.



Mechanically, it supports a wide operating temperature range from -40 to +125 °C and is rated for at least 500 mating cycles, making it suitable for demanding industrial environments. The crimp termination method provides secure wire connections.



The contact is RoHS compliant with exemption 6(c) for lead content, REACH compliant, and meets ELV requirements. It is supplied in a packaging size of 10 pieces with a net weight of 3 g per piece.

09110006132 Quick Information

Product Type: Heavy Duty Connector Contact
Series: TC 70
Canonical Name: Harting Han TC70 Male Crimp Contact, 16 mm², 6 AWG
Subcategory: Heavy Duty Connector Contacts

09110006132 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Annex XVII substances Not contained; REACH ANNEX XIV substances Not contained; REACH SVHC substances Yes (Lead)

09110006132 Features

  • Rated for continuous current up to 70A.
  • Silver-plated copper alloy for low contact resistance.
  • Supports 6 AWG (16 mm²) wire gauge.
  • Machined turned contact design for high durability.
  • Rated for 500 mating cycles minimum.

09110006132 Applications

  • Used in heavy duty connector systems.
  • Suitable for industrial power applications.
  • Ideal for high-current signal transmission.
  • Designed for the Han TC70 series.

09110006132 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of this contact?

≤70 A.

What wire gauge does this contact support?

6 AWG (16 mm² conductor cross-section).

What is the contact resistance?

≤0.5 mΩ.

What is the operating temperature range?

-40 to +125 °C.

How many mating cycles is it rated for?

≥500 mating cycles.

What is the stripping length?

15.5 mm.

Is it RoHS compliant?

Yes, RoHS compliant with exemption 6(c) for copper alloy containing up to 4 % lead by weight.
