| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Positions Loaded | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

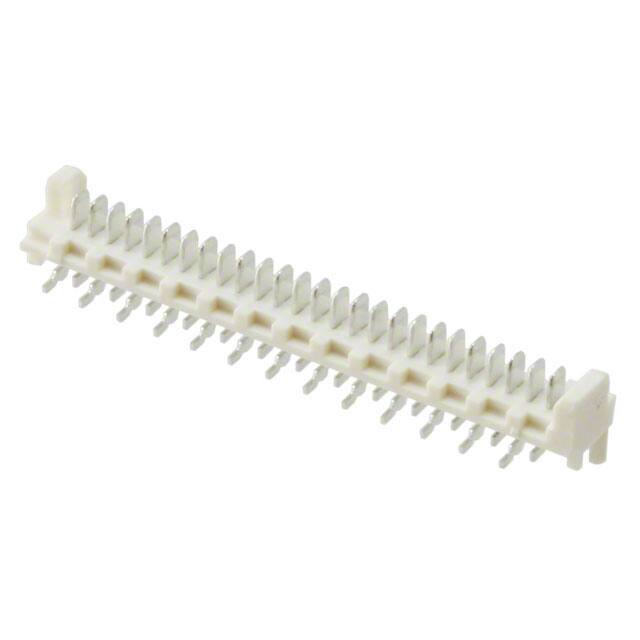

The Molex 0908140926 is a 26-position single-row shrouded header designed for board-to-cable/wire applications. It features a 1.27mm pitch and surface mount termination with solder contacts.
The connector uses male blade contacts made of brass with a tin finish 118.1µin thick. The housing is natural polyamide (nylon) glass-filled material rated UL94 V-0. Shrouding provides 2-wall protection with a push-pull fastening type.
Rated at 1.2A per contact and 250V, this header includes a board guide feature for simplified alignment during assembly. Contact length is 2.15mm and insulation height measures 4.10mm.
The pitch is 1.27mm (0.050").
It has 26 positions, with all positions loaded in a single row.
Current rating is 1.2A and voltage rating is 250V.
It is surface mount with solder termination.
Insulation is polyamide (nylon) glass filled with UL94 V-0 flammability rating.
