| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

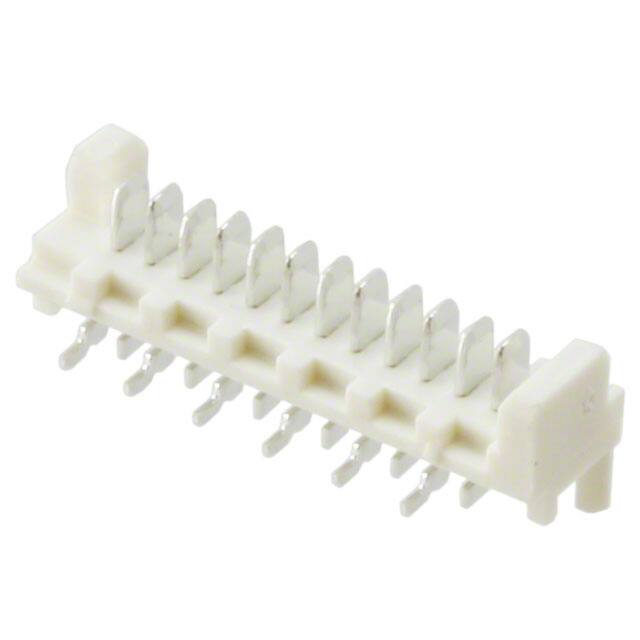

The Molex 0908140212 is a 12-position single row header with male blade contacts designed for board-to-cable/wire applications. It features a 1.27mm pitch and surface mount termination with solder contacts.
The connector uses a shrouded 2-wall design with push-pull fastening, providing secure mating in compact assemblies. The insulation is made from glass-filled polyamide (nylon) in a natural color and has a UL94 V-0 flammability rating.
Electrical ratings include 1.2A current capacity and 250V voltage rating, suitable for low-power signal and power connections. The contacts are made of brass with a tin finish (3.00µm thickness). A built-in board guide aids alignment during automated assembly.
Packaged in tape and reel for automated pick-and-place, this header is appropriate for surface mount assembly processes.
It has 12 positions in a single row.
The pitch is 1.27mm (0.050 inches).
The current rating is 1.2A and the voltage rating is 250V.
It is a surface mount component with solder termination.
