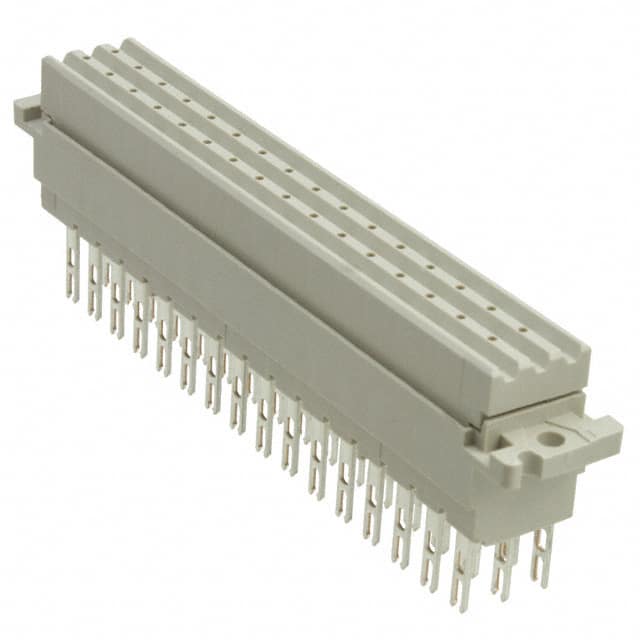

09062486823 DIN 41612 receptacle connector from Harting with 48 female contacts. Panel mount with solder lug termination, rated for 6A.
Mfr Part #:

09062486823

Available from 1 distributors
Mfr Name: Harting
Harting
DIN 41612 receptacle connector from Harting with 48 female contacts. Panel mount with solder lug termination, rated for 6A.
✓ Total Stock: 4 pcs
$ Price Range: $11.23 - $17.43

09062486823 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09062486823 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Resistance
Insulation Resistance
Lead Style
Level, Class
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Rated Current
SVHC Present
Storage Temperature
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

09062486823 Description

Short technical summary and product information.

The Harting 09062486823 is a DIN 41612 power connector featuring 48 female socket contacts arranged in 3 rows. It is designed for panel mount applications with solder lug termination, making it suitable for PCB-to-cable connections. The connector has a pitch of 5.08mm and is rated for 6A at 20°C. It offers a performance level 2 according to IEC 60603-2, with an insertion and withdrawal force of ≤75 N and a minimum of 400 mating cycles. The housing is made of glass-fibre filled thermoplastic (RAL 7032 pebble grey) with UL 94 V-0 flammability rating. Contacts are copper alloy with noble metal plating on the mating side and tin on the termination side. Electrical characteristics include insulation resistance >10^12 Ω, contact resistance ≤15 mΩ, and test voltages of 1.55 kV (contact-contact) and 2.5 kV (contact-ground). The operating temperature range is -55°C to +125°C. This connector is suitable for backplane and power distribution applications in industrial and railway environments, complying with EN 45545-2 fire protection standards.

09062486823 Quick Information

Product Type: DIN 41612 Connector
Series: DIN-Power
Canonical Name: Harting DIN-Power F048FL-9,0C1-2 Connector, Receptacle, Female Sockets, 48 Positions, Panel Mount
Subcategory: DIN 41612 Power Connector

09062486823 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

09062486823 Estimated Pricing

Qty Low High
1+ $17.43 $17.43
10+ $16.27 $16.27
20+ $13.43 $13.43
60+ $13.06 $13.06
100+ $12.59 $12.59
260+ $12.58 $12.58
500+ $11.23 $11.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

09062486823 Features

  • 48 female contacts in 3 rows with 5.08mm pitch.
  • Panel mount with solder lug termination.
  • Rated for 6A continuous current at 20°C.
  • UL 94 V-0 flammability rated thermoplastic housing.
  • Compliant with EN 45545-2 fire protection for railways.

09062486823 Applications

  • Used for power and signal distribution in backplane systems.
  • Suitable for industrial control and automation equipment.
  • Ideal for railway rolling stock requiring fire-safe connectors.
  • Applicable in PCB-to-cable connections in panel mount enclosures.

09062486823 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09062486823 connector have?

48 positions (power contacts).

What is the pitch of the Harting 09062486823?

5.08 mm (0.200 inches).

What is the rated current of this connector?

6 A at 20°C.

What mounting type does the 09062486823 use?

Panel mount.

What is the operating temperature range?

-55°C to +125°C.

How many mating cycles is the connector rated for?

≥400 cycles.

Is the connector RoHS compliant?

Yes, RoHS compliant.
