| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

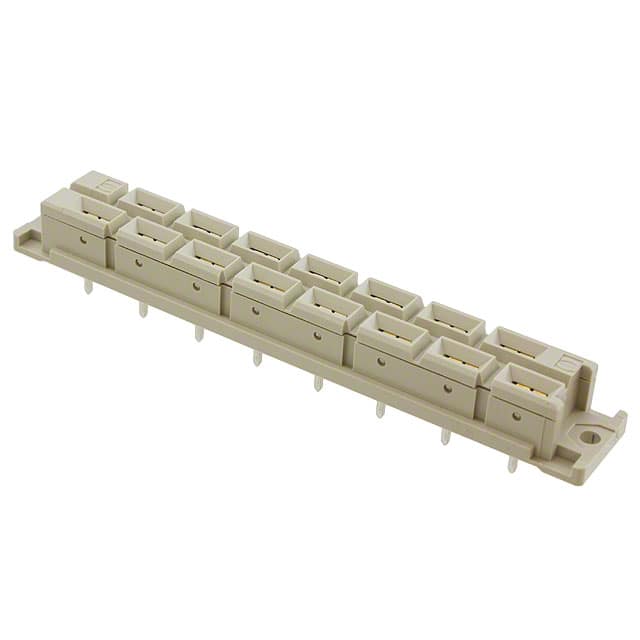

The Harting 09062152821 is a DIN 41612 receptacle connector featuring a H 15 style configuration with 15 female blade socket positions. All positions are loaded, providing full connectivity in a 2-row layout with a 10.16mm (0.400") pitch. This connector is designed for through hole mounting with solder termination, making it suitable for backplane and PCB interconnection applications where reliable power distribution is required.
As part of the DIN 41612 standard family, this connector offers a robust interface for industrial and telecommunications equipment. The receptacle design accepts male blade pins, ensuring secure mating in rack and panel systems. The 10.16mm pitch provides adequate spacing for power applications, while the 2-row arrangement optimizes board space utilization.
The through hole solder termination provides a strong mechanical bond to the PCB, suitable for applications requiring vibration resistance and long-term reliability. This connector is RoHS3 compliant and has an MSL of 1 (unlimited), though these compliance claims are unverified.
15 power positions, all loaded, in 2 rows.
10.16mm (0.400").
Through hole with solder termination.
H 15 style receptacle with female blade sockets.
