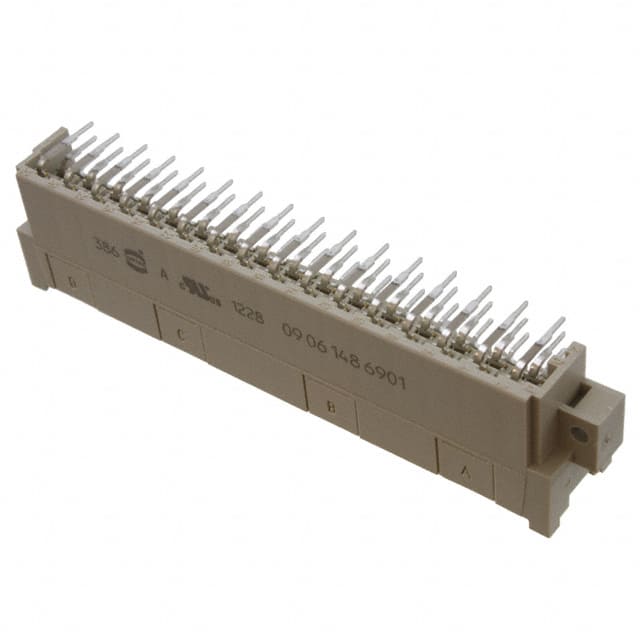

The Harting 09061486901 is a DIN 41612 Type F male connector with 48 power contacts arranged in 3 rows. It features a 5.08mm pitch on the mating side and 2.54mm on the termination side, designed for through hole right angle mounting with wave soldering termination.
Rated at 6A per contact at 20°C, this connector offers a contact resistance of ≤15 mΩ and insulation resistance >10¹² Ω. It is rated for 400 mating cycles and operates over a temperature range of -55°C to +125°C.
The connector uses a glass-fibre filled thermoplastic insert with copper alloy contacts plated with noble metal over nickel on the mating side and tin over nickel on the termination side. It includes D20 coding and a fixing flange for secure PCB mounting.
48 power positions.
5.08mm (0.200") on the mating side.
6 A per contact at 20°C.
Through hole, right angle with wave soldering termination.
-55°C to +125°C.
Yes, RoHS3 compliant.
Copper alloy contacts with noble metal over nickel on the mating side and tin over nickel on the termination side.
