| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Conflict Minerals | |
| Connection Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Rated Current | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Method |

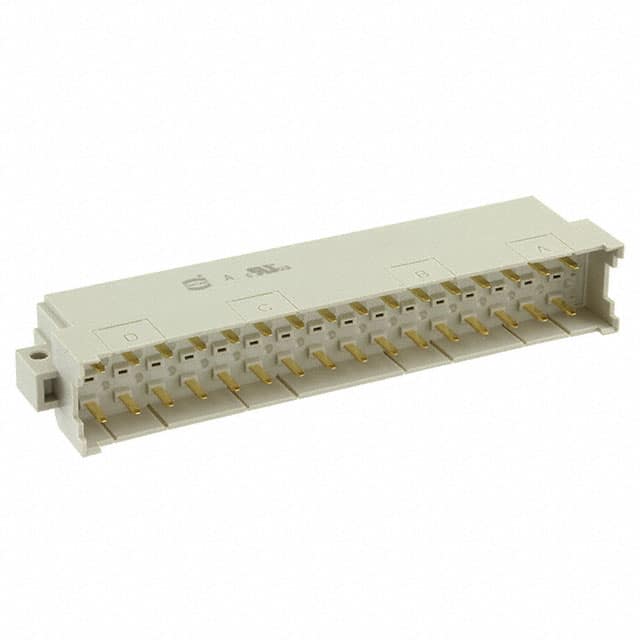

The Harting 09061322931 is a DIN 41612 male header connector from the DIN-Power series. It features 48 positions with 32 contacts loaded in 3 rows. The connector uses a right angle through hole mounting with solder termination. Contact spacing is 2.54 mm on the termination side and 3.81 mm on the mating side. Rated current is 6 A at 20°C, with a limiting temperature range of -55 to +125°C. The housing is made of glass-fibre filled thermoplastic with a V-0 flammability rating according to UL 94. Contacts are copper alloy with a noble metal finish (gold or gold-palladium) on the mating side and tin over nickel on the termination side. The connector is rated for at least 500 mating cycles. It is designed for motherboard to daughtercard, extender card, or PCB to cable connections. It is RoHS, REACH, and ELV compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.29 | $14.29 |
| 10+ | $12.78 | $12.78 |
| 20+ | $11.00 | $11.00 |
| 60+ | $10.69 | $10.69 |
| 100+ | $10.31 | $10.31 |
| 260+ | $9.64 | $9.64 |
| 500+ | $9.21 | $9.21 |
| 1,000+ | $8.77 | $8.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 48 positions (power), with 32 contacts loaded in 3 rows.
The pitch is 2.54 mm (0.100 inches).
The rated current is 6 A measured at 20°C, see derating curve for details.
The mounting type is through hole, right angle.
The limiting temperature range is -55 to +125 °C.
The connector supports at least 500 mating cycles.
The contact finish is gold or gold-palladium on the mating side, with flash thickness.
