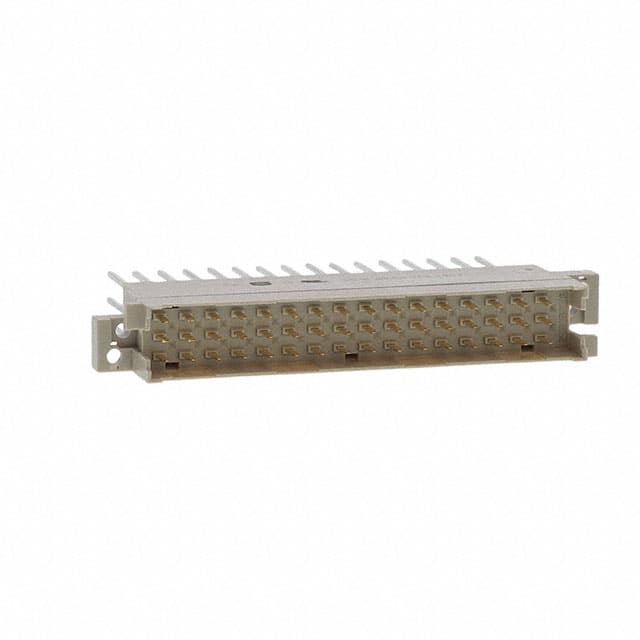

09060482903 Harting DIN 41612 Type F male connector with 48 contacts in 3 rows, straight orientation, and wire wrap termination.
Mfr Part #:

09060482903

Available from 1 distributors
Mfr Name: Harting
Harting
Harting DIN 41612 Type F male connector with 48 contacts in 3 rows, straight orientation, and wire wrap termination.
✓ Total Stock: 140 pcs
$ Price Range: $53.88 - $74.55

09060482903 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
140 pcs
On Request
140 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09060482903 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Resistance
Failure Rate
Insulation Resistance
Lead Style
Level, Class
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Prop 65
Rated Current
SVHC Present
Storage Temperature
Style
Tape & Reel
Termination
View Similar Products (0)

09060482903 Description

Short technical summary and product information.

The Harting 09060482903 is a DIN 41612 Type F male connector designed for backplane and cable-to-cable applications. It features 48 contacts arranged in 3 rows (rows z, d, and b) with a straight contact orientation. The termination method is wire wrap with a termination length of 22 mm.



Electrical specifications include a rated current of 6 A at 20 °C, minimum clearance distance of 1.6 mm, minimum creepage distance of 3 mm, insulation resistance greater than 10^12 Ω, and contact resistance of 15 mΩ maximum. The connector is rated for a limiting temperature range of -55 to 125 °C.



The insert is made of glass-fibre filled thermoplastic resin in RAL 7032 (pebble grey). Contacts are copper alloy with noble metal over nickel plating on the mating side and nickel on the termination side. The connector meets flammability class UL 94 V-0 and fire protection standard EN 45545-2 for railway vehicles.

09060482903 Quick Information

Product Type: DIN 41612 Connector
Series: DIN 41612
Canonical Name: DIN-Power F48MW-22,0C1-1
Subcategory: DIN 41612 Type F

09060482903 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Not contained

09060482903 Estimated Pricing

Qty Low High
1+ $74.55 $74.55
10+ $64.75 $64.75
20+ $61.95 $61.95
50+ $56.57 $56.57
100+ $53.88 $53.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

09060482903 Features

  • DIN 41612 Type F male connector.
  • 48 contacts in 3 rows.
  • Wire wrap termination, 22 mm length.
  • Rated current 6 A at 20 °C.
  • Operating temperature -55 to 125 °C.

09060482903 Applications

  • Backplane interconnection in industrial electronics.
  • Cable-to-cable connections in control systems.
  • PCB to cable wiring in rack-mounted equipment.
  • Railway vehicle electronics per EN 45545-2.

09060482903 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

48 contacts (power) in 3 rows.

What is the current rating?

6 A at 20 °C (see derating curve for details).

What is the mounting type?

Through hole with wire wrap termination.

What is the operating temperature range?

-55 to 125 °C.

What is the contact spacing?

Row-to-row spacing 3.81 mm, contact-to-contact spacing 5.08 mm.

Is this connector RoHS compliant?

Yes, RoHS compliant per datasheet.

What is the flammability rating?

UL 94 V-0.
