| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

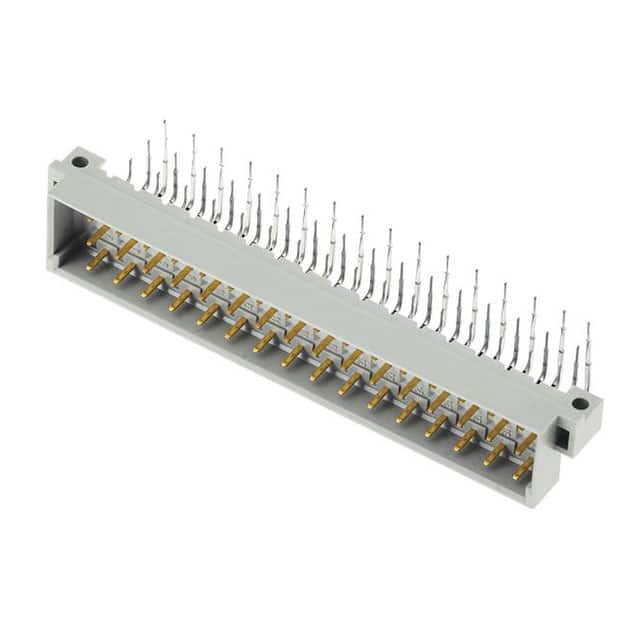

The Harting 09051486921222 is a DIN 41612 header connector featuring 48 male pins arranged in 3 rows with a 5.08mm pitch. This connector uses through hole right angle mounting and solder termination, making it suitable for backplane and PCB applications requiring a robust, reliable connection.
The connector is rated Level/Class 2, indicating a standard level of performance and reliability. All 48 positions are loaded, providing full signal or power routing capability. The right angle orientation allows for space-saving designs where connectors are mounted parallel to the board surface.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.91 | $11.91 |
| 10+ | $11.03 | $11.03 |
| 20+ | $9.37 | $9.37 |
| 100+ | $8.25 | $8.25 |
| 500+ | $8.16 | $8.16 |
| 1,000+ | $7.59 | $7.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 48 positions, all loaded.
The pitch is 5.08mm (0.200 inches).
Through hole, right angle mounting.
It has 3 rows of pins.
Solder termination.
