| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Lead Spacing | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination |

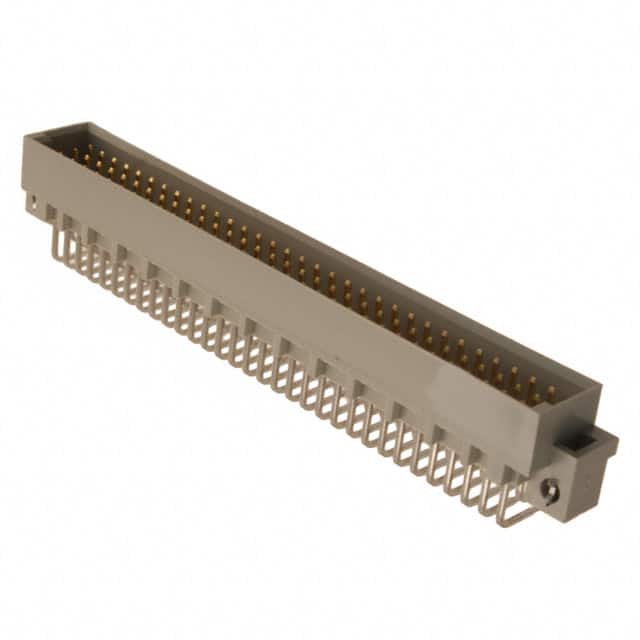

The Harting 09033966921 is a DIN 41612 style C header connector designed for backplane and card-edge applications. It features 96 male pins arranged in 3 rows with a 2.54mm pitch, providing high-density signal routing.
The connector is configured with all positions loaded and includes mounting clips for secure attachment to the PCB. It supports a right angle orientation with through hole mounting and solder termination, making it suitable for compact designs.
This connector is rated for Level 2 class and is compatible with standard DIN 41612 backplane systems. It is RoHS and REACH compliant (unverified) and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.57 | $5.57 |
| 10+ | $5.06 | $5.06 |
| 20+ | $4.74 | $4.74 |
| 50+ | $4.52 | $4.52 |
| 100+ | $4.30 | $4.30 |
| 200+ | $3.98 | $3.98 |
| 500+ | $3.84 | $3.84 |
| 1,000+ | $3.66 | $3.66 |
| 2,000+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions.
2.54mm (0.100").
Through hole, right angle.
3 rows.
Solder.
Mounting clips.
Level 2.
