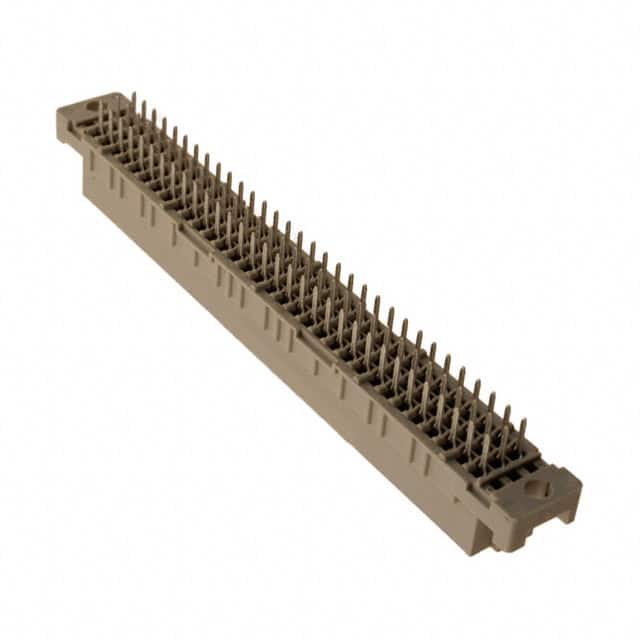

The Harting 09032967825 (also known as 09 03 296 7825) is a DIN 41612 Type C receptacle connector designed for backplane and mezzanine applications. It has 96 positions (all loaded) in 3 rows (a, b, c) with 2.54mm contact spacing on both mating and termination sides. The connector uses wave soldering termination with a termination length of 4.5mm and includes a fixing flange for secure PCB mounting.
Electrical specifications include a rated current of 2A at 20°C (with derating), insulation resistance greater than 10^12 Ω, contact resistance less than or equal to 20 mΩ, and a test voltage of 1 kV. The operating temperature range is -55 to +125°C. Mechanical characteristics include an insertion force of ≤90 N, withdrawal force of ≤60 N, and a minimum of 50 mating cycles. Performance level is 3 per IEC 60603-2.
The insert is made of glass-fibre filled thermoplastic in RAL 7032 (pebble grey), and contacts are copper alloy with noble metal plating on the mating side and tin on the termination side. Flammability class is V-0 per UL 94. The connector is not hot pluggable and belongs to isolation group IIIa. It is compliant with RoHS, REACH, ELV, China RoHS, and Prop 65 (contains antimony trioxide and nickel).
96 positions, all loaded.
2.54mm on both mating and termination sides.
2A at 20°C, with derating.
1 kV Ur.m.s.
Through hole with wave solder termination and fixing flange.
-55 to +125°C.
Greater than 10^12 Ω.
