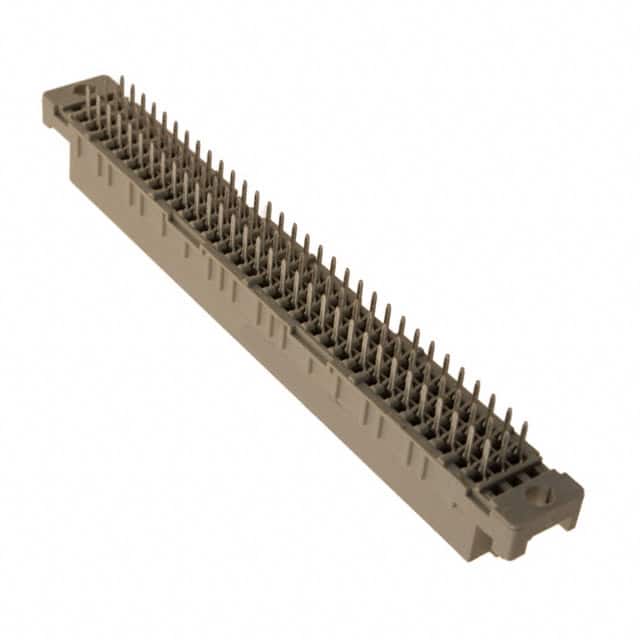

09032966825 Harting 09032966825 is a DIN 41612 Type C receptacle with 96 female contacts arranged in 3 rows. It features a 2.54 mm pitch, through hole mounting with wave soldering termination, and is rated for 2 A at 20°C.
Mfr Part #:

09032966825

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09032966825 is a DIN 41612 Type C receptacle with 96 female contacts arranged in 3 rows. It features a 2.54 mm pitch, through hole mounting with wave soldering termination, and is rated for 2 A at 20°C.
✓ Total Stock: 21 pcs
$ Price Range: $2.64 - $4.18

09032966825 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09032966825 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Resistance
Insulation Resistance
Lead Spacing
Lead Style
Level, Class
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Rated Current
SVHC Present
Specifications
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

09032966825 Description

Short technical summary and product information.

The Harting 09032966825 is a DIN 41612 Type C receptacle connector designed for backplane and mezzanine applications. It has 96 female contacts arranged in three rows (a, b, c) with 32 positions per row, on a standard 2.54 mm pitch on both the termination and mating sides. The connector uses wave soldering termination with a 4.5 mm termination length and includes a fixing flange for secure PCB attachment.



Electrical specifications include a rated current of 2 A at 20°C, minimum clearance and creepage distances of 1 mm, insulation resistance greater than 10^12 Ω, and contact resistance of 20 mΩ maximum. The connector is rated for at least 400 mating cycles with a maximum insertion force of 90 N and withdrawal force of 60 N. It operates over a temperature range of -55°C to +125°C.



The insert is made of glass-fibre filled thermoplastic in RAL 7032 (pebble grey), and the contacts are copper alloy with noble metal plating on the mating side and tin over nickel on the termination side. The connector meets UL 94 V-0 flammability requirements and is compliant with RoHS, REACH, ELV, and China RoHS.

09032966825 Quick Information

Product Type: DIN 41612 Connector
Series: DIN-Signal C096FS-4,5C1-2
Canonical Name: DIN-Signal C096FS-4,5C1-2
Subcategory: DIN 41612 Type C

09032966825 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: Yes

09032966825 Estimated Pricing

Qty Low High
1+ $4.18 $4.18
10+ $3.81 $3.81
20+ $3.62 $3.62
50+ $3.49 $3.49
100+ $3.31 $3.31
200+ $3.07 $3.07
500+ $2.96 $2.96
1,000+ $2.82 $2.82
2,000+ $2.64 $2.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

09032966825 Features

  • 96 female contacts in 3 rows.
  • 2.54 mm pitch on both sides.
  • Rated current 2 A at 20°C.
  • Through hole with wave soldering termination.
  • UL 94 V-0 flammability rated.

09032966825 Applications

  • Backplane connections in industrial electronics.
  • Mezzanine board interconnects.
  • Motherboard to daughtercard applications.
  • DIN 41612 standard rack systems.

09032966825 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09032966825 have?

96 positions arranged in 3 rows (a, b, c) with 32 positions per row.

What is the pitch of this connector?

2.54 mm on both the termination side and mating side.

What is the current rating of the 09032966825?

2 A at 20°C, with derating required at higher temperatures.

What mounting type does this connector use?

Through hole mounting with wave soldering termination.

What is the operating temperature range?

-55°C to +125°C.

Is the 09032966825 RoHS compliant?

Yes, RoHS compliant.

What is the mating cycle durability?

At least 400 mating cycles.
