| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,601 pcs
|
2601 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Clearance Distance | |
| Color (Insert) | |
| Connector Type | |
| Contact Resistance | |
| Creepage Distance | |
| ELV | |
| Fire Protection | |
| Flammability | |
| Hot Plugging | |
| Industrial Grade | |
| Insertion Force | |
| Insulation Resistance | |
| Isolation Group | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Material (Contacts) | |
| Material (Insert) | |
| Mating Cycles | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Performance Level | |
| Pitch | |
| Prop 65 | |
| Rated Current | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Surface (Contacts) | |
| Termination | |
| Test Voltage | |
| Withdrawal Force |

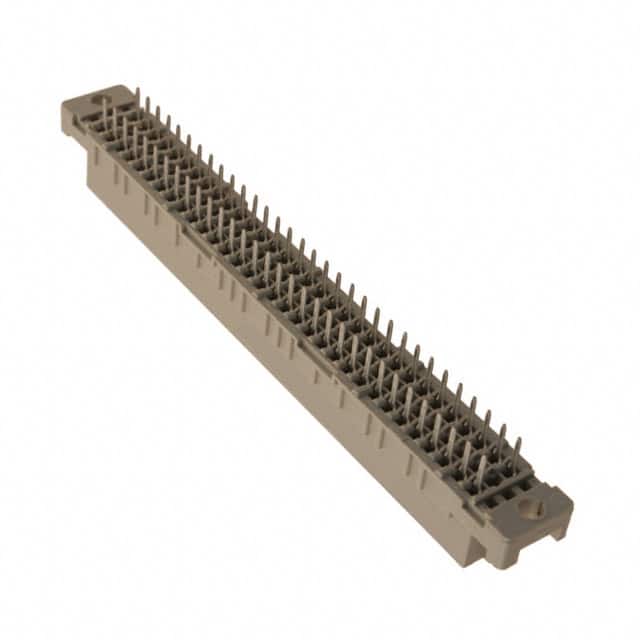

This Harting DIN 41612 connector is a Type C receptacle with 64 female sockets arranged in 3 rows (rows a and c) at a 2.54mm pitch. It features through hole mounting with wave soldering termination and a fixing flange for secure PCB attachment. The connector is rated for 2A per contact at 20°C (see derating curve) and has a contact resistance of ≤20 mΩ and insulation resistance >10^12 Ω. It is designed for motherboard to daughtercard and mezzanine connections. The operating temperature range is -55 to +125°C, and it supports at least 400 mating cycles with insertion force ≤60 N and withdrawal force ≤40 N. The insert is made of glass-fibre filled thermoplastic (RAL 7032 pebble grey), and contacts are copper alloy with noble metal over nickel on the mating side and tin over nickel on the termination side. The connector meets performance level 2 per IEC 60603-2 and has isolation group IIIa. It is not hot pluggable.
Receptacle, Female Sockets, Style C per DIN 41612.
64 contacts in 3 rows (rows a and c).
2.54mm (0.100") pitch, through hole mounting with solder termination.
Rated current 2A at 20°C (see derating curve). Operating temperature -55 to +125°C.
Contact resistance ≤20 mΩ, insulation resistance >10^12 Ω.
At least 400 mating cycles.
RoHS compliant, REACH Annex XVII/XIV/SVHC not contained, UL 94 V-0 flammability, EN 45545-2 fire protection, ELV compliant, China RoHS (e).
