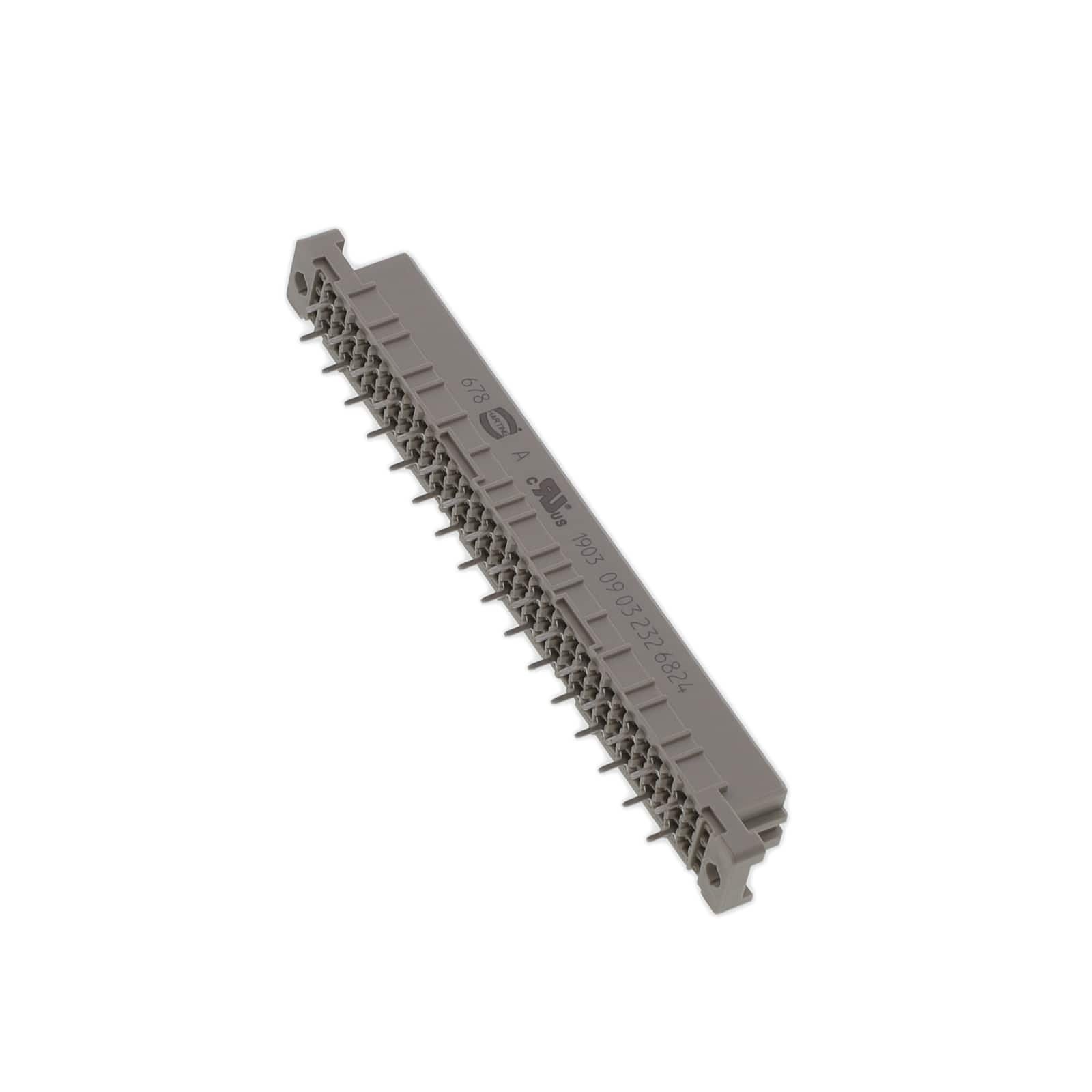

The Harting 09032326824 (DIN-Signal C032FS-2,9C1-2) is a DIN 41612 Type C receptacle designed for board-to-board connections in backplane systems. It offers 96 total positions with 32 contacts loaded in rows a and c at positions 2,4,...,30,32. The contact spacing is 2.54mm on both mating and termination sides, with a termination length of 2.9mm for wave soldering.
Electrical specifications include a rated current of 2A at 20°C (subject to derating), contact resistance ≤20mΩ, insulation resistance >10¹²Ω, and a test voltage of 1kV r.m.s. The isolation group is IIIa (175 ≤ CTI < 400). Mechanical performance includes insertion force ≤30N, withdrawal force ≤20N, and a minimum of 400 mating cycles.
The connector is constructed with a glass-fibre filled thermoplastic insert (RAL 7032 pebble grey) and copper alloy contacts. The mating side contacts have a noble metal finish over nickel, while the termination side is tin over nickel. It includes a fixing flange for PCB mounting and features coding with loss of contacts. The material flammability class is V-0.
Compliance includes RoHS, REACH, ELV, China RoHS (e), and California Proposition 65 (contains antimony trioxide and nickel). The connector meets IEC 60603-2 performance level 2 and fire protection requirements per EN 45545-2 (R26).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.63 | $3.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions total, with 32 contacts loaded in rows a and c at positions 2,4,...,30,32.
2.54 mm on both the mating side and termination side.
2 A at 20°C, with derating applicable at higher temperatures.
Through hole with solder termination (wave soldering).
≤20 mΩ.
>10¹² Ω.
-55°C to +125°C.
