| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

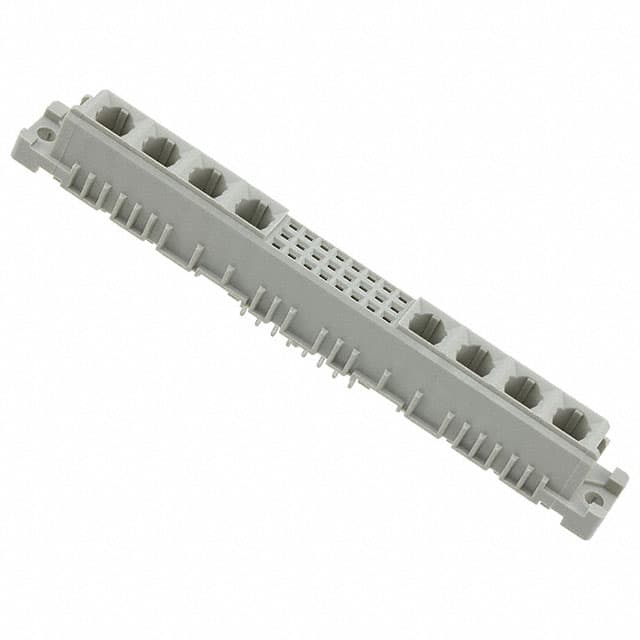

The Harting 09032246864 is a DIN 41612 receptacle connector designed for backplane and rack-and-panel applications. It features a 32-position layout with 24 signal positions and 8 additional positions for coax or power contacts, arranged in 3 rows at a 2.54mm pitch. The connector uses an M-flat style and is rated Class 2 per DIN 41612 standards.
This receptacle accepts female sockets and is terminated via solder to a through-hole PCB. The contacts are finished with gold or gold-palladium for reliable low-resistance connections. The insulator and contact materials are unspecified but typical for DIN 41612 connectors.
Designed for use in industrial electronics, telecommunications, and data processing equipment, this connector provides a robust interface for high-density signal and power distribution. The 2.54mm pitch is standard for DIN 41612 Type C and compatible backplane systems.
32 positions total: 24 signal positions plus 8 positions for coax or power contacts.
The pitch is 2.54mm (0.100 inches).
Through hole mounting with solder termination.
Gold or gold-palladium contact finish.
M-flat style.
