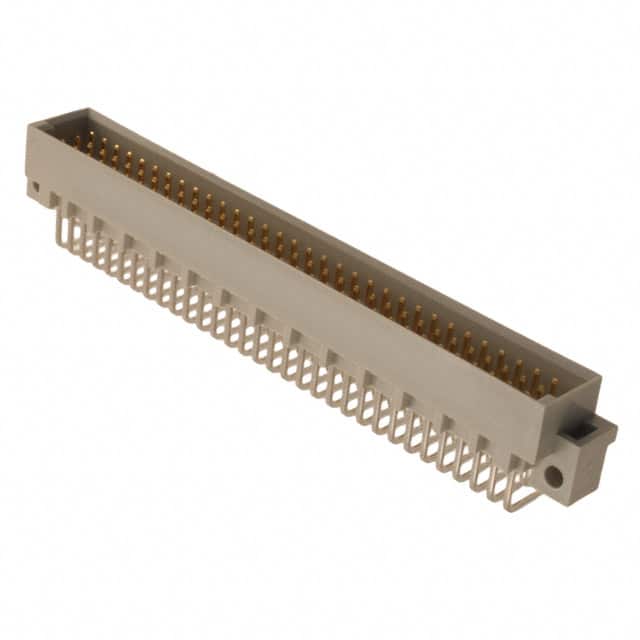

This Harting 09031966921 is a DIN 41612 Type C male header connector with 96 positions arranged in 3 rows. It features a 2.54mm pitch on both mating and termination sides, and is designed for through hole, right angle mounting with solder termination. The connector includes a fixing flange for secure PCB attachment.
Electrical specifications include a rated current of 2A at 20°C (see derating curve), contact resistance ≤20mΩ, insulation resistance >10¹²Ω, and a test voltage of 1kV. It is rated for performance level 1 per IEC 60603-2 and belongs to isolation group IIIa (175 ≤ CTI < 400). Hot plugging is not supported.
Mechanically, the connector supports ≥500 mating cycles with an insertion force ≤60N and withdrawal force ≤40N. It operates over a limiting temperature range of -55 to +125°C. The insert is made of glass-fibre filled thermoplastic resin (UL94 V-0), and contacts are copper alloy with gold over nickel plating on the mating side and tin over nickel on the termination side.
This connector is suitable for backplane applications including motherboard to daughtercard, extender card, and PCB to cable connections. Coding is achieved via loss of contacts.
96 positions.
2.54mm.
2A at 20°C.
Through hole, right angle.
-55 to +125°C.
≥500 cycles.
UL94 V-0.
