| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Clearance Distance | |
| Coding | |
| Color (Insert) | |
| Connection Type | |
| Connector Type | |
| Contact Orientation | |
| Contact Resistance | |
| Creepage Distance | |
| Flammability Class | |
| Hot Plugging | |
| Industrial Grade | |
| Insertion Force | |
| Insulation Resistance | |
| Isolation Group | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Limiting Temperature | |
| Material (Contacts) | |
| Material (Insert) | |
| Mating Cycles | |
| Mounting Type | |
| Net Weight | |
| Number of Contacts | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| PCB Fixing | |
| Performance Level | |
| Pitch | |
| Rated Current | |
| SVHC Present | |
| Standard Package Quantity | |
| Style | |
| Surface (Contacts Mating Side) | |
| Surface (Contacts Termination Side) | |
| Termination | |
| Termination Method | |
| Test Voltage | |
| Withdrawal Force |

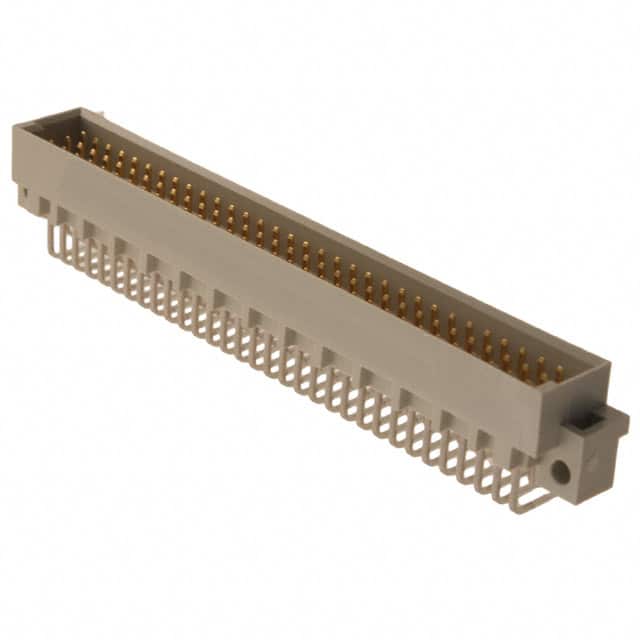

This HARTING DIN-Signal C096MS-3,0C1-1 is a 96-contact male header connector designed for DIN 41612 applications. It features a right angle, through hole mounting style with wave soldering termination. The connectors three rows of contacts are arranged in a 2.54mm pitch pattern.
The rated current is 2A at 20°C with a derating curve provided. This performance level 1 connector offers insulation resistance greater than 10^12 ohms and contact resistance of 20 milliohms or less. The housing is constructed from glass-fibre filled thermoplastic resin in RAL 7032 pebble grey color, and contacts are copper alloy with gold over nickel plating on the mating side and tin over nickel on the termination side.
Designed for motherboard to daughtercard, extender card, and PCB to cable connections, the connector includes side coding and PCB fixing flanges. It maintains a limiting temperature range of -55°C to +125°C and is rated for 500 mating cycles.
This connector has 96 contacts arranged in 3 rows (rows a, b, c) with 32 positions per row.
The contact spacing is 2.54mm on both the termination and mating sides.
The rated current is 2A, measured at 20°C (see derating curve for higher temperatures).
It is a through hole, right angle mounting connector with wave soldering termination.
The limiting temperature range is -55°C to +125°C.
