| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

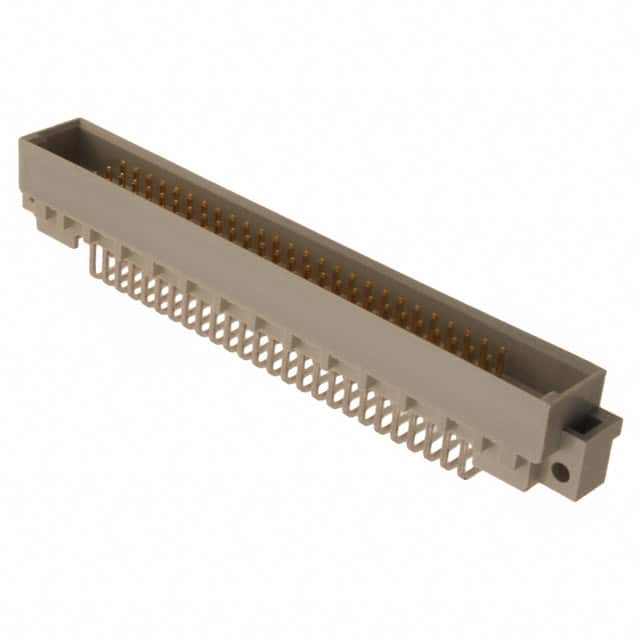

The 09031786901 is a DIN 41612 header connector manufactured by Harting. It features 80 positions (78 standard plus 2 positions for coax, fiber optic, or power contacts), arranged in 3 rows with a 2.54mm pitch. The connector is through-hole mounted with a right-angle orientation, making it suitable for backplane and card-edge applications. Contacts are finished with gold flash for reliable conductivity. The connector is rated as Level/Class 2. All positions are loaded. The RoHS compliance is indicated as RoHS3, though unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.65 | $13.65 |
| 10+ | $11.69 | $11.69 |
| 20+ | $11.69 | $11.69 |
| 25+ | $11.12 | $11.12 |
| 250+ | $10.76 | $10.76 |
| 1,000+ | $8.86 | $8.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions (78 standard plus 2 positions for coax, fiber optic, or power contacts).
2.54mm (0.100").
Through hole, right angle.
3 rows.
Gold flash.
Style M.
Level/Class 2.
