09031646921 DIN 41612 Type C male connector with 96 positions (64 loaded), 3 rows, 2.54mm pitch, through hole right angle termination, rated 2A.
Mfr Part #:

09031646921

Available from 1 distributors
Mfr Name: Harting
Harting
DIN 41612 Type C male connector with 96 positions (64 loaded), 3 rows, 2.54mm pitch, through hole right angle termination, rated 2A.
✓ Total Stock: 7 pcs

09031646921 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09031646921 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish - Mating
Contact Material
Contact Resistance
Halogen Free
Industrial Grade
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Level, Class
Mating Cycles
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Rated Current
SVHC Present
Storage Temperature
Style
Termination
Termination Style
View Similar Products (0)

09031646921 Description

Short technical summary and product information.

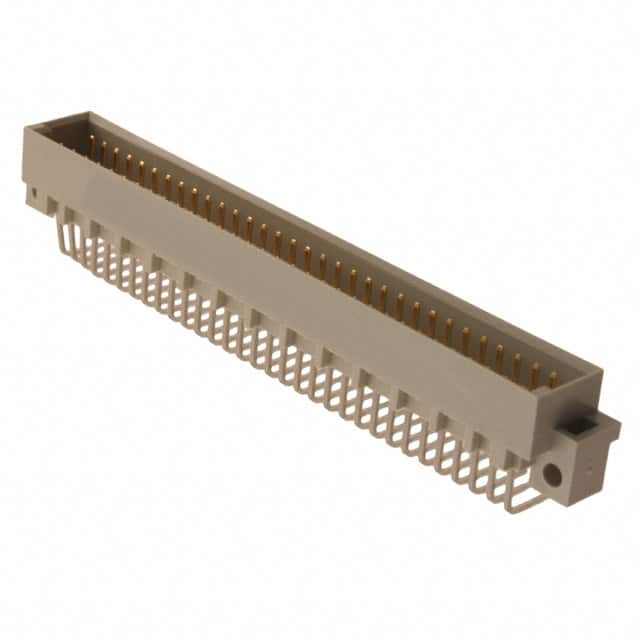

The Harting 09031646921 is a DIN 41612 Type C male connector designed for backplane and PCB-to-cable applications. It features 96 contact positions arranged in 3 rows with a 2.54mm pitch, with rows a and c populated for a total of 64 loaded contacts. The connector uses wave soldering termination and is mounted through hole at a right angle.



Electrical specifications include a rated current of 2A at 20°C, contact resistance ≤20 mΩ, insulation resistance >10¹² Ω, and a test voltage of 1 kV r.m.s. The operating temperature range is -55 to +125 °C. Mechanical durability is rated for ≥500 mating cycles with insertion force ≤60 N and withdrawal force ≤40 N.



The insulator is made of glass-fibre filled thermoplastic resin with UL 94 V-0 flammability rating. Mating contacts are gold over nickel plating, termination contacts are tin over nickel. The connector is RoHS and REACH compliant.

09031646921 Quick Information

Product Type: DIN 41612 Connector
Series: C064MS
Canonical Name: DIN-Signal C064MS-3,0C1-1-cod
Subcategory: DIN 41612 Type C

09031646921 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant (Annex XVII, XIV, SVHC not contained)
Lead Free: Yes

09031646921 Features

  • 96 positions with 64 contacts loaded.
  • 3 rows at 2.54mm pitch spacing.
  • Through hole right angle mounting.
  • Rated 2A current at 20°C.
  • UL 94 V-0 flammability rated insulator.

09031646921 Applications

  • Backplane connector for card cages.
  • Motherboard to daughtercard connections.
  • Extender card interface applications.
  • PCB to cable connection systems.

09031646921 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

The contact spacing is 2.54mm on both the termination and mating sides.

How many positions does this connector have?

The connector has 96 total positions arranged in 3 rows of 32, with 64 contacts loaded on rows a and c.

What is the rated current?

The rated current is 2A measured at 20°C, with derating applicable at higher temperatures.

What is the operating temperature range?

The limiting temperature range is -55 to +125 °C.

What mounting type does this connector use?

It is a through hole, right angle mount connector with wave soldering termination.
