| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| California Proposition 65 | |
| Connector Type | |
| Contact Resistance | |
| Flammability Rating | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Rated Current | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

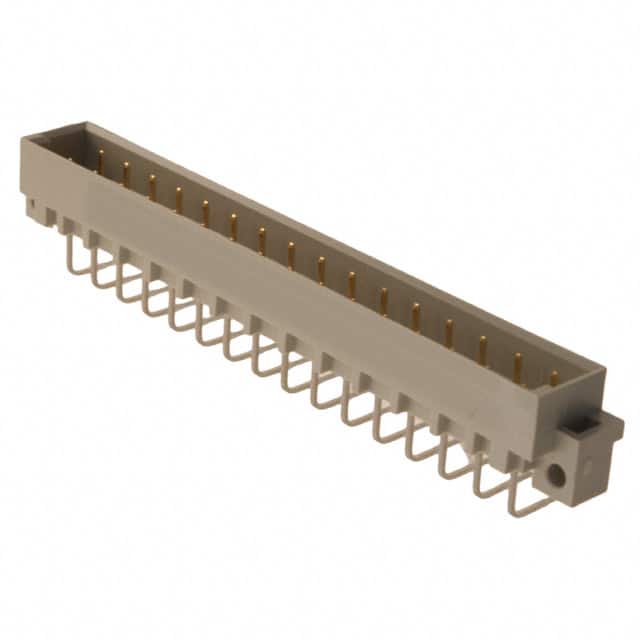

The Harting 09031326921 is a DIN 41612 Type C male header connector designed for backplane and motherboard-to-daughtercard applications. It offers 96 positions with 32 positions loaded across 3 rows, using a standard 2.54mm pitch. The connector features a through hole right angle mounting style with solder termination, making it suitable for PCB applications where space is constrained.
This connector is rated for a performance level of 2 per IEC 60603-2. Electrical specifications from related datasheets indicate a rated current of 2A, insulation resistance greater than 10^12 ohms, and contact resistance of 20 milliohms or less. The operating temperature range is -55°C to +125°C, with a minimum of 500 mating cycles.
The connector is RoHS compliant and REACH unaffected. It is constructed with a thermoplastic resin insulator and meets UL 94 V-0 flammability rating. The part is designed for reliable signal transmission in industrial and commercial electronic systems.
It is a DIN 41612 Type C header with male pins.
It has 96 positions total, with 32 positions loaded.
The pitch is 2.54mm.
It is through hole, right angle mounting.
The rated current is 2A.
The operating temperature range is -55°C to +125°C.
Yes, it is RoHS compliant.
