| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Clearance Distance | |
| Coding | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Resistance | |
| Contact Spacing (Mating Side) | |
| Country of Origin | |
| Creepage Distance | |
| ELV | |
| European Customs Tariff Number | |
| Failure Rate | |
| Fire Protection on Railway Vehicles | |
| Flammability Rating | |
| GTIN | |
| Hot Plugging | |
| Insertion Force | |
| Insulation Resistance | |
| Insulator Material | |
| Isolation Group | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| PCB Fixing | |
| Packaging Quantity | |
| Pitch | |
| Railway Classification | |
| SVHC Present | |
| Specifications | |
| Storage Temperature | |
| Termination Method | |
| Test Voltage (Contact-Contact) | |
| Test Voltage (Contact-Ground) | |
| UL/CSA Certifications | |
| Weight | |
| Withdrawal Force |

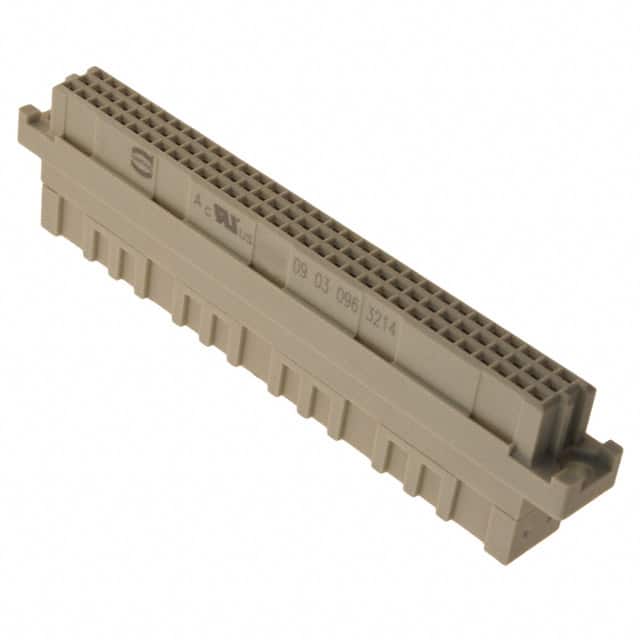

The 09030963214 is a DIN 41612 Type C female connector housing manufactured by HARTING, part of the DIN-Signal C096FC-B series. This receptacle housing is designed for crimp termination and is intended for use with separately ordered crimp contacts.
It features 96 positions arranged in 3 rows with a 2.54mm contact pitch. The housing is free hanging (in-line) and includes a fixing flange for secure mounting. The gray thermoplastic insulator is glass-fibre filled and meets UL 94 V-0 flammability requirements.
Electrically, the housing offers insulation resistance greater than 10^12 Ω, contact resistance of 20 mΩ or less, and withstands test voltages of 1 kV (contact-contact) and 1.55 kV (contact-ground). The isolation group is IIIa (175 ≤ CTI < 400). It is not designed for hot plugging.
The connector operates over a temperature range of -55°C to +125°C and complies with RoHS, ELV, and China RoHS (e). It also meets railway fire protection standards EN 45545-2 R26 and has railway classification F1/I2 per NFF 16-101/102.
96 positions.
2.54mm.
Free hanging (in-line).
Crimp termination.
-55°C to +125°C.
Yes, RoHS compliant.
No, crimp contacts must be ordered separately.
