| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
154 pcs
|
154 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clearance Distance | |
| Coding | |
| Connector Type | |
| Contact Finish - Mating | |
| Contact Finish - Termination | |
| Contact Material | |
| Contact Resistance | |
| Creepage Distance | |
| Fire Protection | |
| Flammability Rating | |
| Hot Plugging | |
| Insertion Force | |
| Insulation Color | |
| Insulation Material | |
| Insulation Resistance | |
| Isolation Group | |
| Lead Style | |
| Level, Class | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| PCB Fixing | |
| Performance Level | |
| Pitch | |
| Prop 65 | |
| Rated Current | |
| Storage Temperature | |
| Style | |
| Termination | |
| Test Voltage | |
| Withdrawal Force |

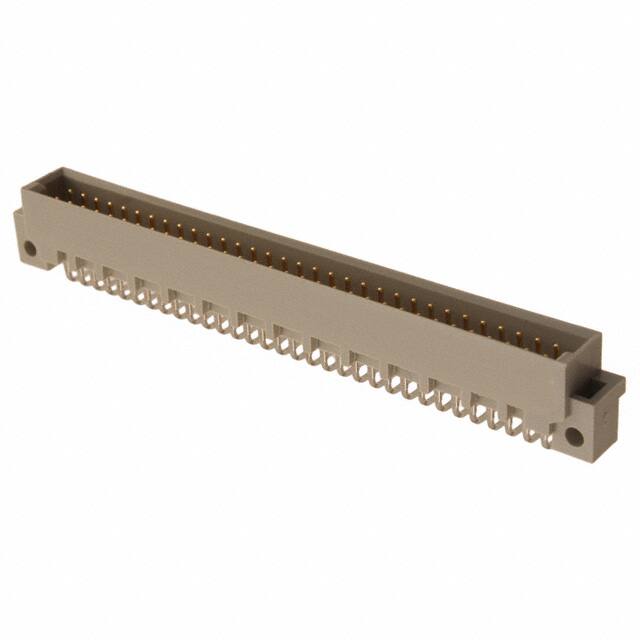

This Harting DIN-Signal connector is a Type C male header with 64 positions loaded in rows a and c. It features 3 contact rows at 2.54mm spacing on both the mating and termination sides. The right-angle through-hole design is suited for motherboard-to-daughtercard, extender card, and PCB-to-cable connections.
Electrical ratings include a rated current of 2A at 20°C (with derating), contact resistance ≤20 mΩ, insulation resistance >10¹² Ω, and a test voltage of 1 kV r.m.s. The operating temperature range spans -55 to +125°C. Mating cycles exceed 500, with insertion force ≤60 N and withdrawal force ≤40 N.
Mechanical construction uses a glass-fibre filled thermoplastic insulator in pebble grey (RAL 7032) and copper alloy contacts with gold over nickel plating on the mating area and tin over nickel on terminations. The housing includes a fixing flange and coding features for reliable alignment. UL 94 V-0 flammability rated.
It is a DIN 41612 Type C male header (signal connector) with 64 positions, 3 rows (rows a and c), 2.54mm pitch.
Rated current is 2A at 20°C (see derating curve). Operating temperature range is -55 to +125°C.
Mounting type is through hole, right angle; termination method is wave solder.
