| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Contacts | |
| Number of Contacts Loaded | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

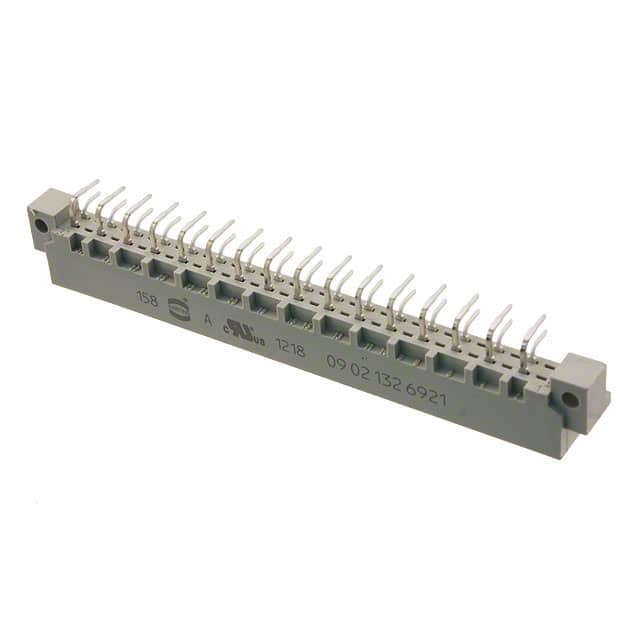

The Harting 09021326921 is a DIN 41612 Type C male connector designed for backplane and motherboard-to-daughtercard applications. It features 64 contact positions with 32 contacts loaded in a 2-row configuration. The connector uses a 2.54mm pitch and is terminated via through hole soldering.
This connector is part of the C064MS series and is rated for performance level 2. It is designed for reliable signal transmission in industrial and commercial electronic systems. The header style is B, and the connector includes a fixing flange for secure PCB attachment.
The part is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified. The datasheet for a similar part number (09036648921) indicates a 3-row variant, but this specific part has 2 rows per the database.
Typical applications include backplane interconnects, extender cards, and PCB-to-cable connections in rack-mounted systems and industrial control equipment.
Header, Male Pins.
64 total positions, with 32 contacts loaded.
2.54mm.
Through Hole.
Solder.
2 rows.
