| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

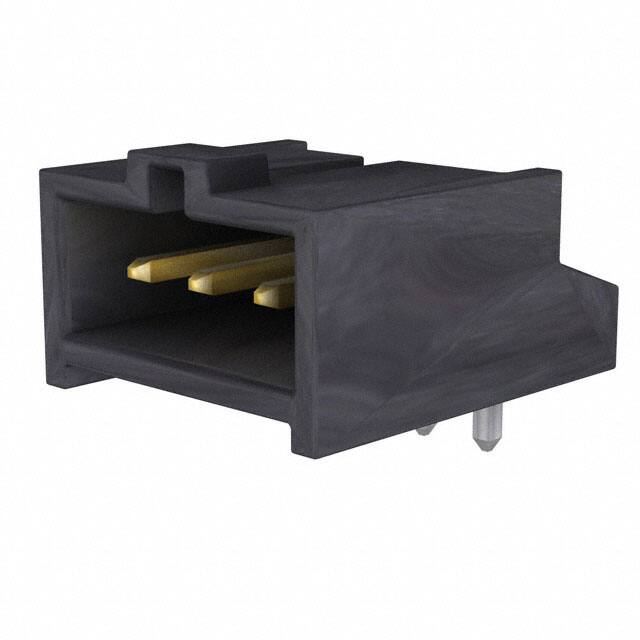

The Molex 0901362203 is a 3-position, single-row pin header with a 2.54mm pitch, part of the Molex header family. This connector features a right-angle through-hole mounting style with solder termination, making it suitable for compact PCB designs where space is constrained.
The header is fully shrouded with a 4-wall design, providing pin protection and alignment with mating connectors. The latch holder fastening type ensures a secure locking connection, ideal for applications where vibration resistance is needed. Contact material is brass with a tin plating of 15µin (0.38µm) thickness, and the insulator is black polyester glass-filled plastic rated UL94 V-0 for flame retardancy.
Intended for board-to-cable/wire connections, this header is commonly used in industrial control, consumer electronics, and other single-row interconnect applications. The 7.21mm insulation height and 6.75mm contact length provide reliable mating depth. No electrical ratings are specified in available data; refer to official documentation for current and voltage limits.
3 positions in a single row.
2.54mm (0.100 inches).
Through hole, right angle with solder termination.
Yes, it features a 4-wall shrouded design.
Latch holder for secure mating.
UL94 V-0 rated polyester, glass filled.
Tin over brass, 15µin (0.38µm) thickness.
