| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

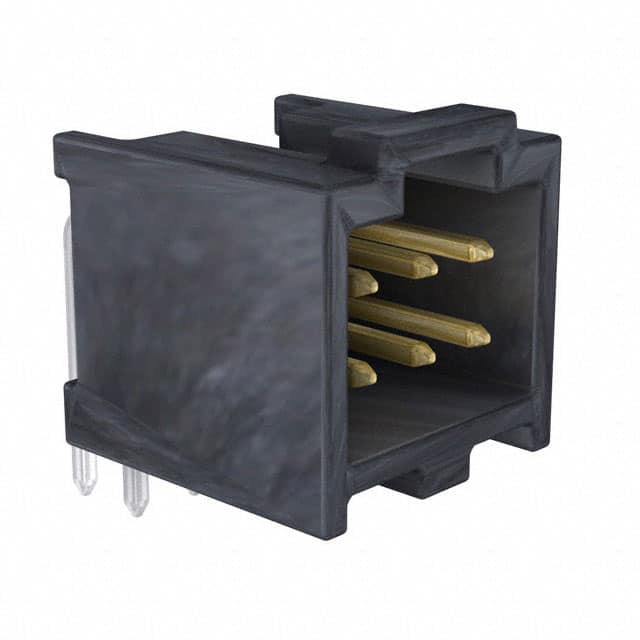

The Molex 0901303206 is a 6-position, 2-row right-angle header with a 2.54mm pitch and 0.100" (2.54mm) row spacing. It features a shrouded 4-wall design with a latch holder for secure mating in board-to-cable or wire applications. The header uses through-hole right-angle mounting and solder termination.
The contacts are made of brass with a square shape and a tin plating thickness of 15.0µin (0.38µm). The insulation is black glass-filled polyester rated UL94 V-0, with an insulation height of 9.75mm (0.384"). The contact length is 6.75mm (0.266").
This header is designed for reliable interconnection in a variety of electronic assemblies. Its robust construction and positive latching mechanism make it suitable for applications where vibration resistance is a consideration.
It has 6 positions (2 rows of 3).
The pitch is 2.54mm (0.100").
Through-hole, right-angle mounting.
Yes, it is a shrouded 4-wall design with latch holder.
Tin plating with thickness of 15.0µin (0.38µm).
Glass-filled polyester, black, UL94 V-0 rated.
2.54mm (0.100").
