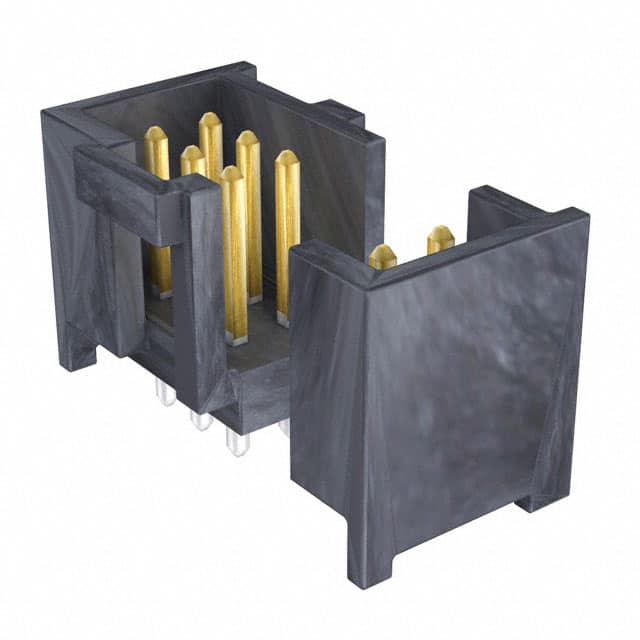

The Molex 0901301220 is a 20 position, 2 row header connector designed for board to cable or wire applications. It uses a 2.54mm (0.100") pitch and a 0.100" (2.54mm) row spacing, making it compatible with standard ribbon cable and IDC connectors.
The connector features a shrouded 4-wall design for pin protection and a latch holder fastening system for secure mating. It uses 6.75mm long square male pins with tin contact finish (15.0µin or 0.38µm) over brass material, providing reliable solder connections through the through hole mounting style.
The insulator is made of black glass filled polyester (PET) with a flammability rating of UL94 V-0. The overall contact length is 0.510" (12.95mm) with an insulation height of 10.90mm (0.429"). All 20 positions are loaded.
It has 20 positions in a 2 row arrangement.
The pitch is 2.54mm (0.100") with a row spacing of 0.100" (2.54mm).
It uses through hole mounting with solder termination.
The contact material is brass with a tin finish of 15.0µin (0.38µm).
Yes, the glass filled polyester insulator has a UL94 V-0 flammability rating.
