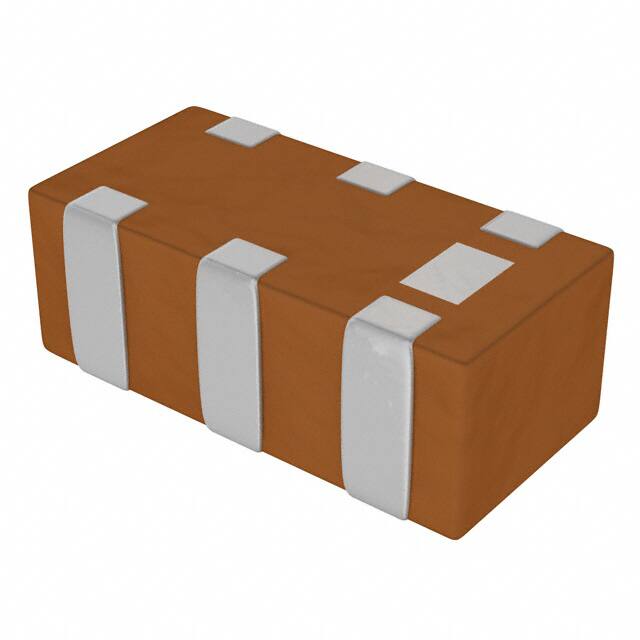

0900BL15C050E The Johanson Technology 0900BL15C050E is a Sub-GHz Balun operating in the 800MHz to 1GHz frequency range. It features a 1:1 impedance ratio and is housed in an EIA 0805 package.
Mfr Part #:

0900BL15C050E

Available from 2 distributors
Mfr Name: Johanson Technology
Johanson Technology
The Johanson Technology 0900BL15C050E is a Sub-GHz Balun operating in the 800MHz to 1GHz frequency range. It features a 1:1 impedance ratio and is housed in an EIA 0805 package.
✓ Total Stock: 7,978 pcs
$ Price Range: $0.99

0900BL15C050E Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
3,978 pcs
On Request
3978 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0900BL15C050E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency Range
Height
Impedance
Insertion Loss (Max)
Length
Mounting Type
Operating Temperature
Phase Difference
Return Loss (Min)
Storage Temperature
Tape & Reel
Termination Style
Thickness
Width
View Similar Products (0)

0900BL15C050E Description

Short technical summary and product information.

This Johanson Technology 0900BL15C050E is a Sub-GHz Balun designed for applications requiring signal balancing in the 800MHz to 1GHz frequency range. It offers a 1:1 impedance ratio with both unbalanced and balanced impedances rated at 50 Ohms.



The balun exhibits a maximum insertion loss of 1.2dB and a minimum return loss of 9.5dB, ensuring signal integrity. The phase difference between the balanced ports is maintained within 180° ±10°, with a maximum amplitude difference of 2.0dB. The component is rated for a maximum continuous wave power capacity of 2W and operates across a temperature range of -40°C to +85°C.



Constructed in an EIA 0805 package, the 0900BL15C050E is designed for surface mount applications. Its dimensions are 2.00mm in length, 1.25mm in width, and 0.65mm in thickness. The termination style is AgPt, and it is supplied on tape and reel in quantities of 4000 pieces.

0900BL15C050E Quick Information

Product Type: Balun
Canonical Name: Sub-GHz Balun, 800MHz - 1GHz, 1:1 Impedance Ratio, EIA 0805
Subcategory: Sub-GHz Balun

0900BL15C050E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0900BL15C050E Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

0900BL15C050E Features

  • Sub-GHz Balun for 800MHz-1GHz.
  • 1:1 impedance ratio, 50/50 Ohm.
  • Low insertion loss (1.2dB max).
  • High return loss (9.5dB min).
  • EIA 0805 surface mount package.

0900BL15C050E Applications

  • Ideal for RF signal balancing.
  • Used in wireless communication systems.
  • Suitable for impedance matching circuits.
  • Applicable in sub-GHz frequency bands.

0900BL15C050E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the 0900BL15C050E Balun?

The 0900BL15C050E Balun operates in the frequency range of 800MHz to 1GHz.

What is the maximum insertion loss for this Balun?

The maximum insertion loss for the 0900BL15C050E is 1.2dB.

What is the minimum return loss specified for the 0900BL15C050E?

The minimum return loss for the 0900BL15C050E is 9.5dB.

What is the impedance of the 0900BL15C050E Balun?

The impedance of the 0900BL15C050E is 50 Ohms for both unbalanced and balanced ports.

What is the operating temperature range for the 0900BL15C050E?

The operating temperature range for the 0900BL15C050E is -40°C to +85°C.

What are the physical dimensions of the 0900BL15C050E in millimeters?

The 0900BL15C050E has dimensions of 2.00mm in length, 1.25mm in width, and 0.65mm in thickness.

What is the package type for the 0900BL15C050E?

The 0900BL15C050E is supplied in an EIA 0805 (2012 Metric) package.
