| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,199 pcs
|
5199 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Features | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

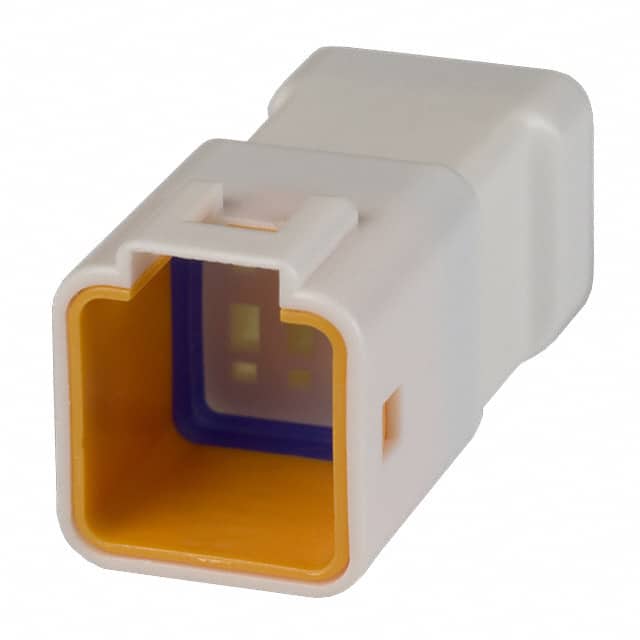

The JST Manufacturing 08T-JWPF-VSLE-D is an 8 position, 2 row rectangular connector housing from the JWPF series. Designed as a free hanging (in-line) plug, it accepts male pin contacts and uses a crimp termination style. The housing is natural color and made of PBT material with a UL94V-0 flammability rating.
This connector housing is rated for 3 A current (AWG #22) and 100 V AC/DC. It offers a contact resistance of 10 mΩ max (initial) and insulation resistance of 1000 MΩ min. The operating temperature range is -55°C to +85°C. It is rated IPX7 per JIS C 0920 (IEC 60529) for waterproof applications.
The housing uses a latch holder fastening type to ensure secure mating. It also features an inner-housing lock and housing-to-terminal locks for reliable electrical and mechanical connections.
The pitch is 2.00 mm.
It has 8 positions arranged in 2 rows.
The current rating is 3 A (with AWG #22 wire).
The voltage rating is 100 V AC/DC.
Yes, it has an IPX7 rating per JIS C 0920 (IEC 60529).
The operating temperature range is -55°C to +85°C.
