| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

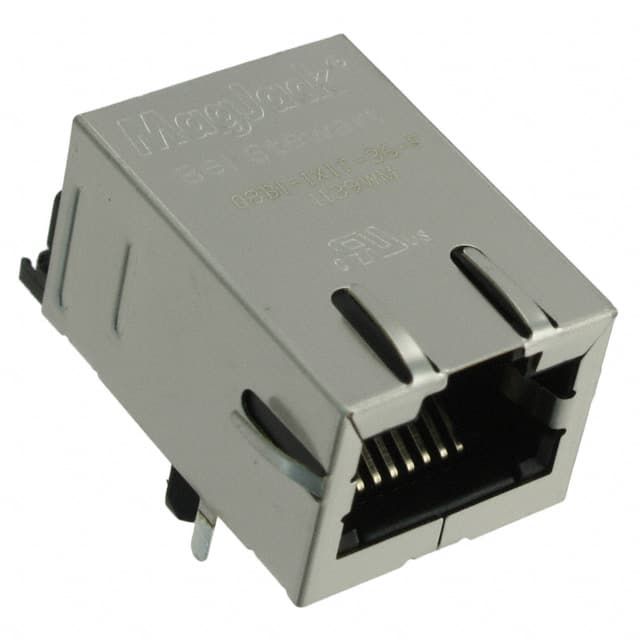

The Bel Fuse 08B1-1X1T-36-F is a single-port RJ45 modular jack with integrated magnetics, designed for 10/100 Base-T Ethernet applications. It features a shielded design with an EMI finger to reduce electromagnetic interference, ensuring reliable signal integrity. The connector is through-hole mounted with a 90° right-angle orientation and tab-up direction, suitable for compact PCB layouts.
The jack includes a board guide for easy alignment during assembly and has gold-plated copper alloy contacts for corrosion resistance and durability. It operates over a wide temperature range of -40°C to 85°C, making it suitable for industrial environments. This connector does not include LED indicators.
The package is through-hole solder termination, compatible with standard wave soldering processes. With a height above board of 0.531 inches (13.49 mm), it is suited for designs requiring low-profile connectors. The part is RoHS3, REACH, and MSL Level 1 compliant, though these statuses are unverified from official documentation.
Through hole.
1 port.
RJ45.
Yes, with EMI finger.
-40°C to 85°C.
10/100 Base-T and AutoMDIX.
Gold.
