| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attenuation | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Operating Temperature | |
| Phase Difference | |
| Power Rating | |
| Return Loss (Min) | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style |

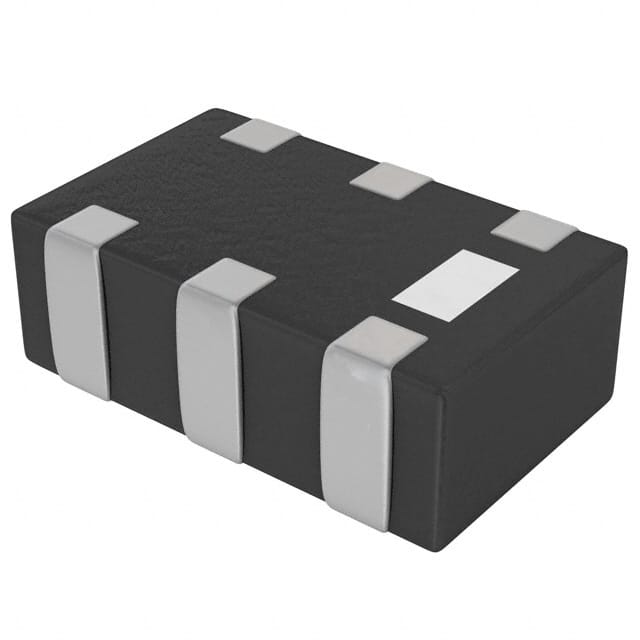

This Johanson Technology 0896BM15A0001E is an impedance-matched balun and LPF, functioning as an integrated passive component. It operates within the 863-928MHz frequency range, with a specified impedance of 50 Ohms. The component exhibits a maximum insertion loss of 1.5dB and a minimum return loss of 9.5dB.
Designed for surface mounting, this balun comes in an 0805 (2012 Metric) package. It is impedance-matched for use with Texas Instruments CC110X, CC111X, CC113X, CC115X, CC110L, CC113L, CC115L, CC430, and RF430 chipsets. The operating temperature range is -40°C to +125°C.
Recommended storage conditions for unused product on tape and reel are +5 to +35°C with 45-75% relative humidity for a maximum of 18 months. The component has a power rating of 1W (CW).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 863-928 MHz.
The impedance is 50 Ohms.
The maximum insertion loss is 1.5 dB.
The minimum return loss is 9.5 dB.
The operating temperature range is -40°C to +125°C.
It is supplied in an 0805 (2012 Metric) package.
Recommended storage conditions are +5 to +35°C with 45-75% RH for a maximum of 18 months.
