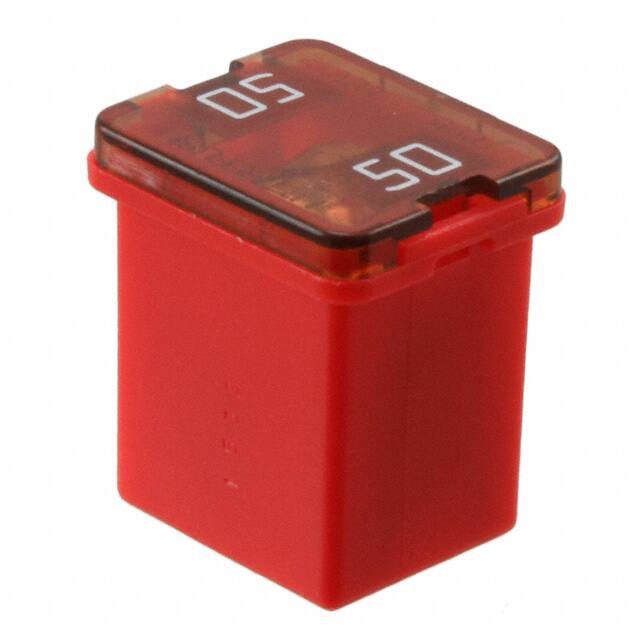

0895050.Z Littelfuse 0895050.Z Low Profile JCASE automotive cartridge fuse rated 50A and 58V DC. Features a 1000A breaking capacity and Auto Link package.
Mfr Part #:

0895050.Z

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse 0895050.Z Low Profile JCASE automotive cartridge fuse rated 50A and 58V DC. Features a 1000A breaking capacity and Auto Link package.
✓ Total Stock: 8,000 pcs

0895050.Z Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0895050.Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Automotive Grade
Breaking Capacity @ Rated Voltage
Color
Current Rating
Current Rating (Amps)
Fuse Type
Height
Housing Material
Lead Style
Length
Melting I²t
Mounting Type
Operating Temperature
Package / Case
SVHC Present
Termination Style
Voltage Rating
Weight
Width
View Similar Products (0)

0895050.Z Description

Short technical summary and product information.

The Littelfuse 0895050.Z is a Low Profile JCASE series automotive cartridge fuse designed for high-current protection in 58V DC systems. It is rated for 50A continuous current and can safely interrupt faults up to 1000A at 58V DC. The fuse uses a blade termination style and requires a holder for mounting.



Electrical characteristics include a melting I²t of 4900 A²s, a typical voltage drop of 96 mV, and a cold resistance of 1.08 mΩ. The operating temperature range spans -40°C to +125°C, making it suitable for harsh automotive environments.



Mechanically, the fuse measures 14.50 mm x 12.00 mm x 16.00 mm and weighs 2.4 g. The housing is constructed from PPA-GF33 with a PSU cover, both rated UL 94 HB for flammability. Insertion force is 53 N max and extraction force is 9 N min. The red color coding indicates the amperage rating for easy identification.

0895050.Z Quick Information

Product Type: Automotive Cartridge Fuse
Series: Low Profile JCASE
Canonical Name: Littelfuse Low Profile JCASE 50A 58V DC Automotive Cartridge Fuse
Subcategory: Low Profile JCASE

0895050.Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

0895050.Z Features

  • Rated 50A continuous current at 58V DC.
  • 1000A interrupting rating at rated voltage.
  • Low Profile JCASE design saves space.
  • Operating temperature range -40°C to +125°C.
  • Color-coded red housing for amperage identification.

0895050.Z Applications

  • Protection for automotive power distribution systems.
  • Suitable for cars, SUVs, trucks, and buses.
  • Used in offroad vehicles and watercraft applications.
  • Ideal for 58V DC electrical system protection.

0895050.Z FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the Littelfuse 0895050.Z fuse?

The fuse is rated for 50 A continuous current.

What is the voltage rating of the 0895050.Z?

The voltage rating is 58 V DC.

What is the breaking capacity of this fuse?

The breaking capacity is 1000 A at 58 V DC.

What package type does the 0895050.Z use?

It uses an Auto Link package (Low Profile JCASE) with blade terminals and requires a holder for mounting.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

What is the melting I²t value for this fuse?

The melting I²t is 4900 A²s.
