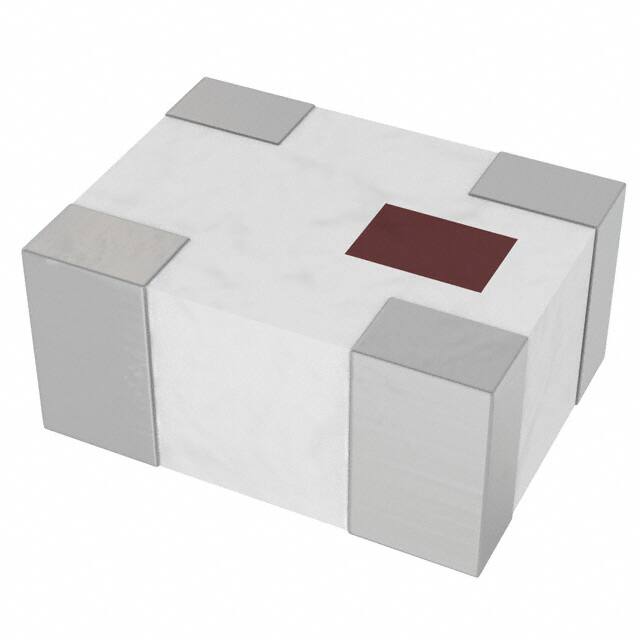

This 3dB hybrid coupler from Johanson Technology, part number 0880CH15A060E, is designed for general purpose applications within the 850-910 MHz frequency range. It offers a power capacity of 2 Watts maximum and maintains an impedance of 50 Ohms.
Key electrical specifications include an insertion loss of 3.3 ± 0.5 dB, a return loss of 14.0 dB minimum, and an isolation of 20.0 dB minimum. The amplitude balance is rated at 1.0 dB maximum, with a phase deviation of 90° ± 3°.
The coupler operates within a temperature range of -40 to +85°C. It is housed in a 4-SMD, No Lead package and is designed for surface mount applications. Mounting considerations suggest mounting with the brown mark facing up, and line width should provide 50 Ohm impedance matching characteristics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 850-910 MHz.
The maximum power capacity is 2 Watts.
The insertion loss is 3.3 ± 0.5 dB.
The operating temperature range is -40 to +85°C.
The isolation is 20.0 dB minimum.
The package type is 4-SMD, No Lead.
