| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,023 pcs
|
1023 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

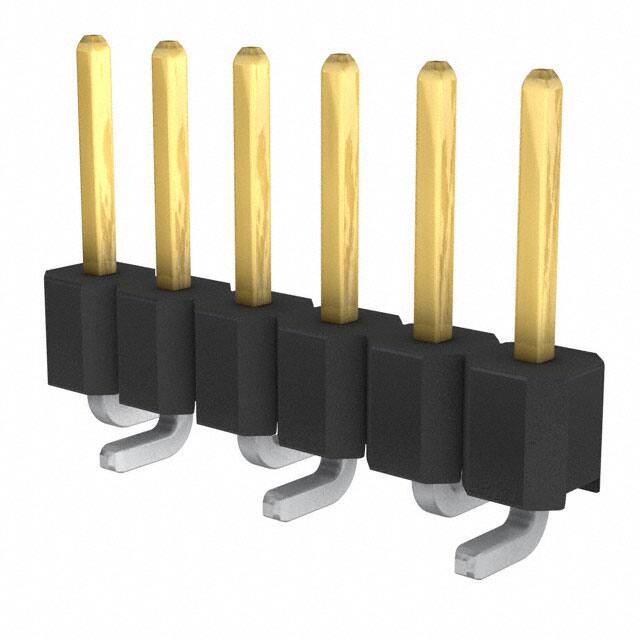

This is a Molex 0878980624 header connector, part of the breakaway header family. It has 6 positions in a single row with a 2.54mm pitch, suitable for board-to-board or cable connections.
The connector features unshrouded male pins with square contact shape, made of copper alloy with tin finish (15µin thickness). The insulator is black glass-filled nylon (PA) with UL94 V-0 flammability rating. Contact length is 5.84mm, insulation height 2.50mm.
Designed for surface mount technology (SMT) with solder termination. The push-pull fastening type allows easy mating and unmating. The connector is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.39 | $2.39 |
| 33+ | $1.87 | $1.87 |
| 132+ | $1.70 | $1.70 |
| 528+ | $1.54 | $1.54 |
| 1,023+ | $1.47 | $1.47 |
| 5,016+ | $1.31 | $1.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.54mm (0.100 inches).
Surface mount (SMD).
Tin, with a thickness of 15.0µin (0.38µm).
Glass-filled polyamide (nylon), black, with UL94 V-0 flammability rating.
Push-pull.
1 row.
