0878325622 This Molex header connector features 14 male pins in a 2.00mm pitch surface mount package with a shrouded design and latch holder fastening.
Mfr Part #:

0878325622

Available from 1 distributors
Mfr Name: Molex
Molex
This Molex header connector features 14 male pins in a 2.00mm pitch surface mount package with a shrouded design and latch holder fastening.
✓ Total Stock: 440 pcs

0878325622 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
440 pcs
On Request
440 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0878325622 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

0878325622 Description

Short technical summary and product information.

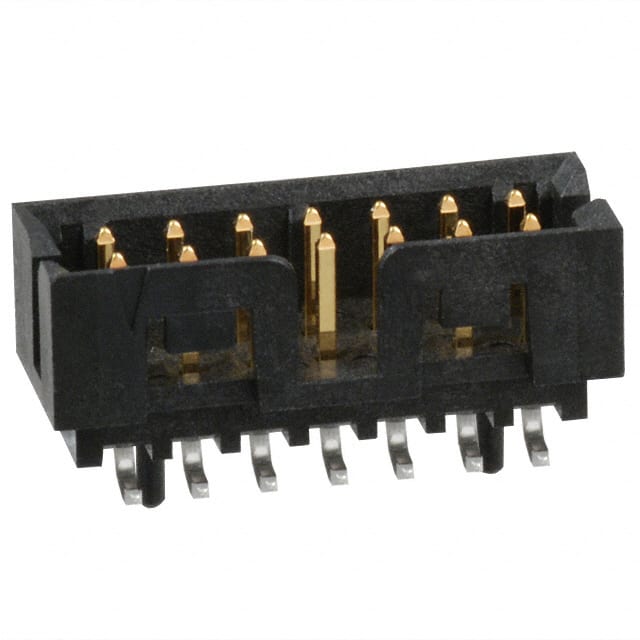

The Molex 0878325622 is a 14-position, 2-row header connector with a 2.00mm pitch and row spacing. It features a shrouded 4-wall design with latch holder for secure mating. The connector is surface mount with solder termination and includes board guide, keying slot, and pick-and-place features for automated assembly.



Contact material is phosphor bronze with tin plating (0.38µm thickness) and square contact shape. The insulator is black glass-filled polyamide (nylon) with UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C.



This connector is suitable for board-to-board or cable-to-board applications in compact electronic assemblies. The 2.00mm pitch allows for high-density interconnections.

0878325622 Quick Information

Product Type: Header Connector
Canonical Name: Molex 0878325622 Header Connector, Surface Mount, 14 Positions, 2.00mm Pitch
Subcategory: Headers, Male Pins

0878325622 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Non-JEDEC
REACH Status: REACH Unaffected

0878325622 Features

  • 14 positions in 2 rows.
  • 2.00mm pitch and row spacing.
  • Shrouded 4-wall design with latch.
  • Surface mount solder termination.
  • Tin-plated phosphor bronze contacts.

0878325622 Applications

  • Suitable for board-to-board connections.
  • Used in cable-to-board interconnects.
  • Ideal for compact electronic assemblies.
  • Employed in industrial control systems.

0878325622 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 0878325622 connector have?

14 positions.

What is the pitch of this header connector?

2.00mm.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 105°C.

What is the contact material and finish?

Phosphor bronze with tin plating, 0.38µm thickness.

What is the insulation material and flammability rating?

Glass-filled nylon, UL94 V-0.

Does this connector have board guide or keying features?

Yes, includes board guide, keying slot, and pick-and-place features.
