| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

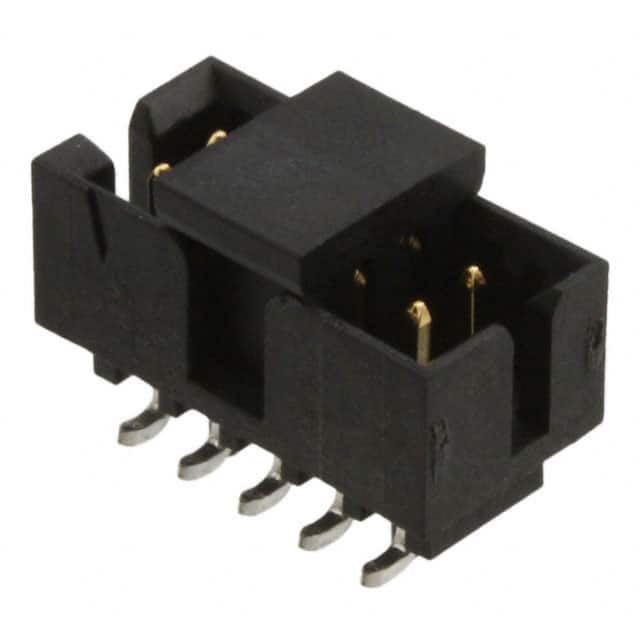

The Molex 0878325423 is a 10-position, 2-row rectangular header connector with a 2.00mm pitch and 2.00mm row spacing. It features male pin contacts made of phosphor bronze with a tin plating (30µin thickness). The connector is shrouded with four walls and uses a push-pull fastening mechanism. The housing is made of black glass-filled nylon (Polyamide) with a UL94 V-0 flammability rating.
This surface-mount connector is designed for board-to-board or cable applications. It includes features such as a board guide, keying slot, and a pick-and-place area for automated assembly. The contact length is 3.60mm and the insulation height is 6.40mm. The operating temperature range is -55°C to 105°C.
The connector complies with RoHS3 and REACH standards (unverified low confidence) and has an MSL of 1 (unlimited). It is available in tape and reel packaging for SMT placement.
10 positions (all loaded), arranged in 2 rows.
2.00mm (0.079 inches) with 2.00mm row spacing.
Surface mount (SMD) with solder termination.
-55°C to 105°C.
Tin plating with 30.0µin (0.76µm) thickness over phosphor bronze base.
Push-pull, with shroud keying slot.
Black glass-filled nylon (Polyamide) with UL94 V-0 rating.
