| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

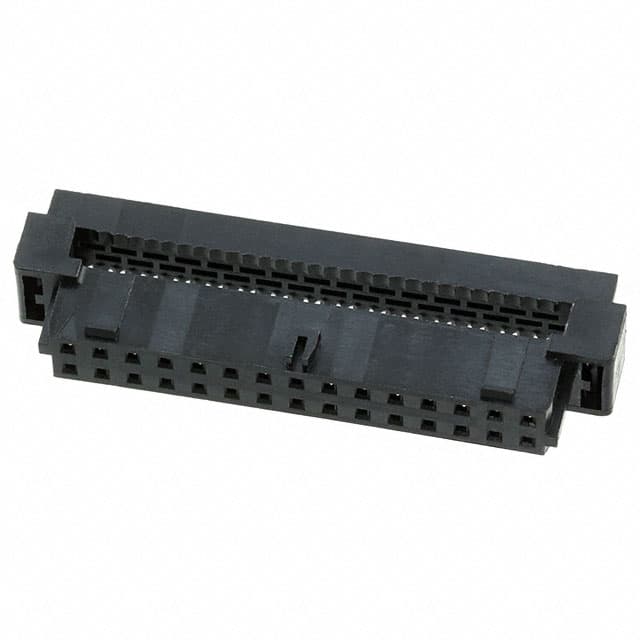

The Molex 0875683093 is a 30 position IDC (Insulation Displacement Connector) receptacle designed for reliable mass termination of 28 AWG ribbon cable. It features a 2.00mm pitch and 2 rows with a row spacing of 2.00mm, providing a compact and efficient interconnect solution. The connector uses female socket contacts with a gold finish (15.0µin / 0.38µm) for reliable signal integrity and corrosion resistance.
This free hanging (in-line) connector includes a locking ramp fastening type for secure mating and features feed through and polarizing key design elements to ensure correct orientation during assembly. The housing is black and supports a wire type of ribbon cable, making it suitable for internal wiring harnesses and board-to-cable applications.
Designed for use in a variety of electronic equipment, this connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is a direct fit for applications requiring a 30 position, 2.00mm pitch IDC interface.
30 positions in 2 rows.
2.00mm pitch with 2.00mm row spacing.
IDC (Insulation Displacement Connector) termination for 28 AWG ribbon cable.
Free hanging (in-line) mounting.
Gold finish with 15.0µin (0.38µm) thickness.
