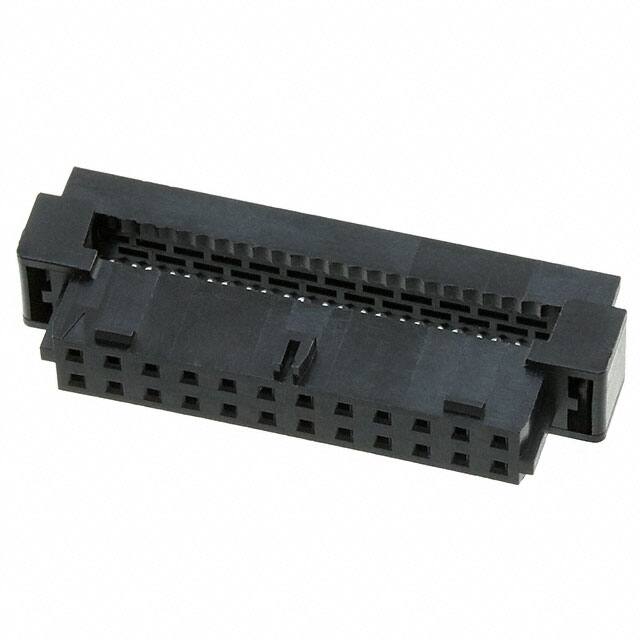

The Molex 0875682493 is a 24 position IDC receptacle connector designed for free hanging (in-line) mounting. It features a 2.00mm pitch and 2 rows of female socket contacts with gold plating (15.0µin). The connector accepts 28 AWG ribbon cable and uses IDC termination for quick, reliable connections.
This connector includes a locking ramp for secure mating and a polarizing key to ensure correct orientation. The feed through design allows daisy chaining of multiple connectors on the same cable. The black housing is suitable for various internal wiring applications.
Typical applications include computer peripherals, industrial controls, and other electronic equipment requiring a compact, reliable interconnect solution for ribbon cable.
24 positions.
2.00mm (0.079 inches).
IDC (Insulation Displacement Connection).
28 AWG ribbon cable.
Gold, 15.0µin (0.38µm) thickness.
Yes, it features a locking ramp.
Free hanging (in-line).
